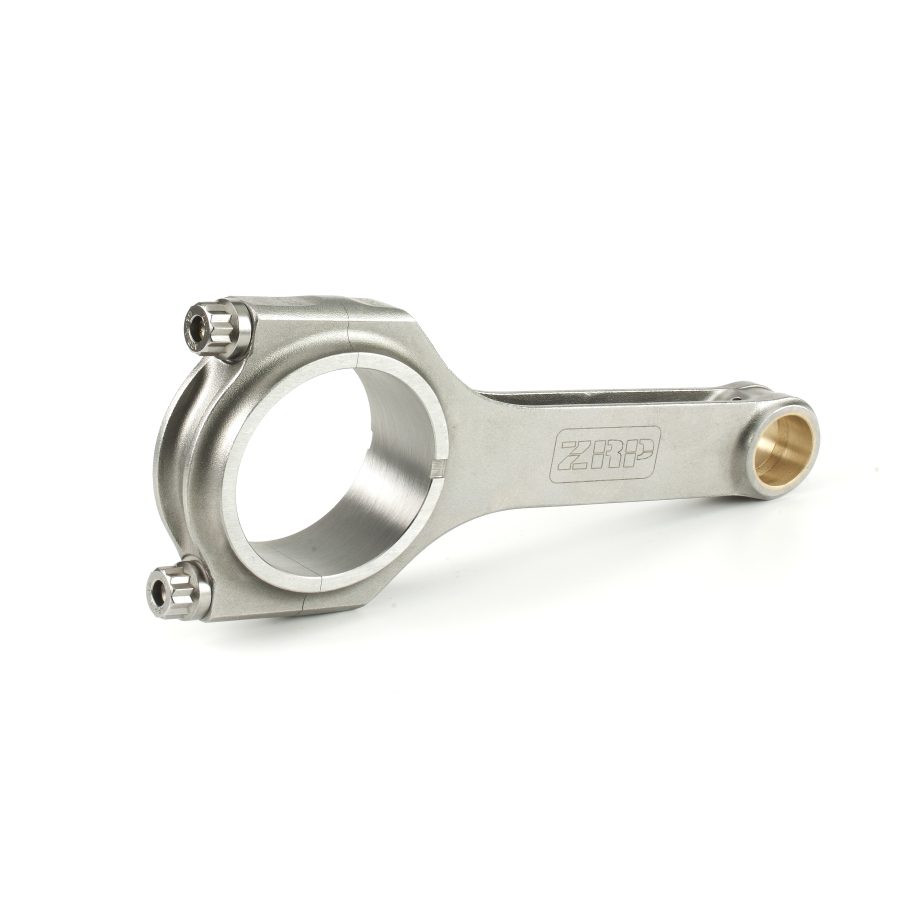

ZRP RODS – SET CONNECTING RODS CITROEN / PEUGEOT 1.6L 16V TU5J4 / TU5JP4 H-BEAM LONG+5.40MM

The Citroen/Peugeot 1.6L TU5J4/TU5JP4 H-Beam connecting rods are made from 4340 high-strength steel and are designed for high performance and extreme durability. This lightweight design combines lightweight performance with proven reliability at extended RPM. The CC length has been increased by 5.40 mm to make these rods ideal for long-rod applications. The bushings are made of aluminum-silicon/bronze and have a radial groove that serves as an oil reservoir. These connecting rods have a ribbed pin end that minimizes pin end distortion under heavy inertial loads while saving excess weight. They are shot peened to relieve material stress and multi-stage heat treated to increase rigidity. Tight manufacturing tolerances ensure a perfect fit while optimizing oil clearances. Bending and torsion are rigorously controlled. Each rod includes ARP 2000 cap fasteners rated at 220,000 psi, with optional ARP L19 material rated at 260,000 psi available as an upgrade, and the entire kit comes with ARP moly and complete assembly instructions.
Additional machiningRetaining sleeves for a perfect fit and accurate reassembly.Protective cone with lip for improved rod integrity in extreme applications.Thrust face grooves for weight reduction.Technical features of ZRP connecting rods.Two-piece forging for high strength.Shot peening for improved fatigue life.Aluminum-silicon/bronze bushing with radial groove.Magnaflux Inspection ensures that the consistency of the forged material meets our high quality standards.Double-rib end caps for increased support.Multi-stage heat treatment for maximum strength, stability, and durability. dimensional stability and fatigue resistance.CNC machined for superior tolerances, accurate to 0.0002″Center-to-center is held to a tolerance of 0.001″Finite Element Analysis (FEA) Computer-generated stress analysis of connecting rodsOptimal balance for weight-matched sets of ± 1 gramAdditional InformationEngine Number TU5J4 / TU5JP4Application 1.6L TU5JP4 / 1.6L TU5J4Notes: Longer rods +5.40 mm / Lightweight designBolt Size 3/8”H-BEAM ShapeLength (CC) 139.00Axle Size 18.00Big Bore 48.66BE Width 23.91Weight 460 gSet of 4ARP2000 Clamping GradeStandard SeriesWeight 460 g
