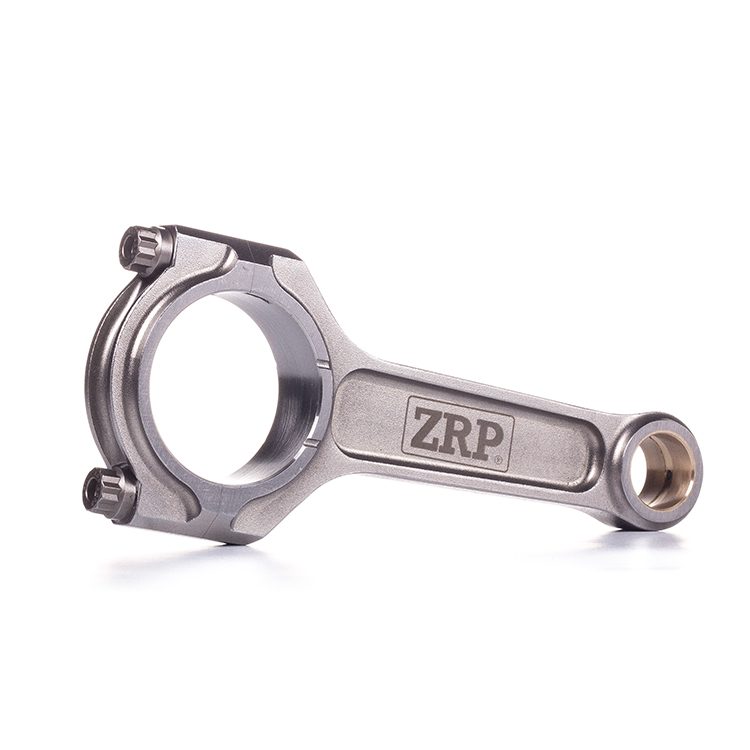

ZRP RODS – SET CONNECTING RODS BMW M70 V12 HD SERIES

The I-Beam “Heavy Duty” series connecting rods for the Honda B18A, B18B, and B20 are designed for high-horsepower/boost applications. They are constructed from the finest raw materials, 4340 high-strength steel, with a specially optimized shape for high performance and extreme durability. The bushings are made from AMPCO 18 material for excellent wear and fatigue resistance and feature a radial groove that serves as an oil reservoir. They are shot-peened to relieve material stress and multi-stage heat treated to increase rigidity. Tight manufacturing tolerances ensure a perfect fit while optimizing oil clearances. Bending and torsion are strictly controlled. Each connecting rod includes ARP 2000 3/8″ plug fasteners rated at 220,000 psi. Optional ARP L19 260,000 psi material is available as an upgrade. The entire kit comes with ARP moly and complete assembly instructions.
Additional machiningCentering sleeves for a perfect fit and accurate reassemblyEmbossed cap with edge for improved big end integrity in extreme applicationsThrust face grooves for weight reductionTechnical features of ZRP connecting rodsI-shape for extra rigidityTwo-piece forging for high strengthShot peening for improved fatigue resistance.Magnaflux Inspection ensures that the consistency of the forged material meets our high quality standards.Double-rib caps for increased support.Multi-stage heat treatment for maximum Strength, dimensional stability, and fatigue resistance.CNC machined for superior tolerances, accurate to 0.0002″Center-to-center is held to a tolerance of 0.001″Finite Element Analysis (FEA) Computer-generated stress analysis of connecting rodsOptimal balance for weight-matched sets of ± 1 gramAdditional InformationEngine Number B18A/B18B/B20Application 1.8L B18 / 2.0L B20Notes Recommended Use: TurboBolt Size 3/8”Shape I-BEAMLength (CC) 137.00Pin Size 9.00pmBig Bore 48.00Width BE 23.75Weight: 528 gSet of 4ARP2000 fastening gradeHeavy Duty SeriesWeight: 528 g
