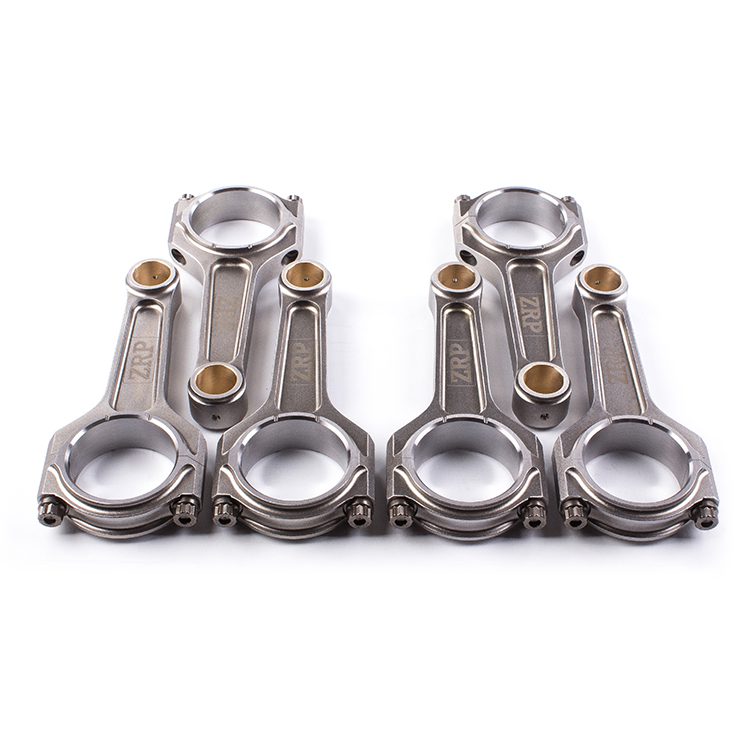

ZRP RODS – CONNECTING ROD SET TOYOTA SUPRA 2JZ I-BEAM PRO SERIES L19 BOLTS

The I-Beam “Heavy Duty” series connecting rods for Audi / VW 1.8L Turbo 20v are intended for high HP/boost applications. Manufactured from the finest raw materials, 4340 high-strength steel with a specially optimized shape for high performance and extreme durability. They are “Rifle Drilled” like OEM to improve oiling on the pin end. They also feature “straight cut” pin ends for increased durability, so they can only be used in conjunction with aftermarket pistons. The bushings are made from AMPCO 18 material for excellent wear and fatigue resistance and have a radial groove that serves as an oil reservoir. They are shot peened to relieve stress from the material and multi-stage heat treated to increase rigidity. Close tolerances in the manufacturing process ensure a perfect fit while optimizing oil clearances. Bending and twisting are strictly controlled. Each rod includes ARP 2000 cap fasteners rated at 220,000 psi, with optional ARP L19 material rated at 260,000 psi available as an upgrade. The entire kit comes with ARP moly and complete assembly instructions.
Additional MachiningRifle drilled for maximum lubrication to increase wrist pin longevity”Straight Cut” Pin End – Suitable for Aftermarket PistonsCentering Sleeves for a Perfect Fit and Accurate ReassemblyRibbed Cap Relief for Improved Big End Integrity in Extreme ApplicationsThrust Face Grooves for Weight ReductionTechnical Features of ZRP Connecting RodsI-Shape for Extra RigidityTwo-Piece Forging for High StrengthShot Peening for Improved Fatigue LifeMagnaflux Inspection ensures the consistency of the forged material meets our high quality standards.Double-rib end caps for increased support.Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue resistance.CNC-machined for superior tolerances, accurate to 0.0002″.Center-to-center is held to a tolerance of 0.001″.Finite Element Analysis (FEA) Computer-generated stress analysis of connecting rods.Optimal balance for weight-matched sets of ± 1 gram.Additional Information Engine number AXX, BHZ, BGB, BWE, BUL, CDNB, BYK, BPJ, BWA, BWT Application 2.0L TFSI/TSI Engine Clipboard Pin end not tapered/barred drilled Bolt size 3/8″ Shape I-BEAM Length (CC) 144.00 Pin size 8.00pm Big Bore 50.60 BE Width 24.89 Weight Gr. 507 Set of 4 Degree of fastening ARP2000 Series Heavy Duty Weight 507
