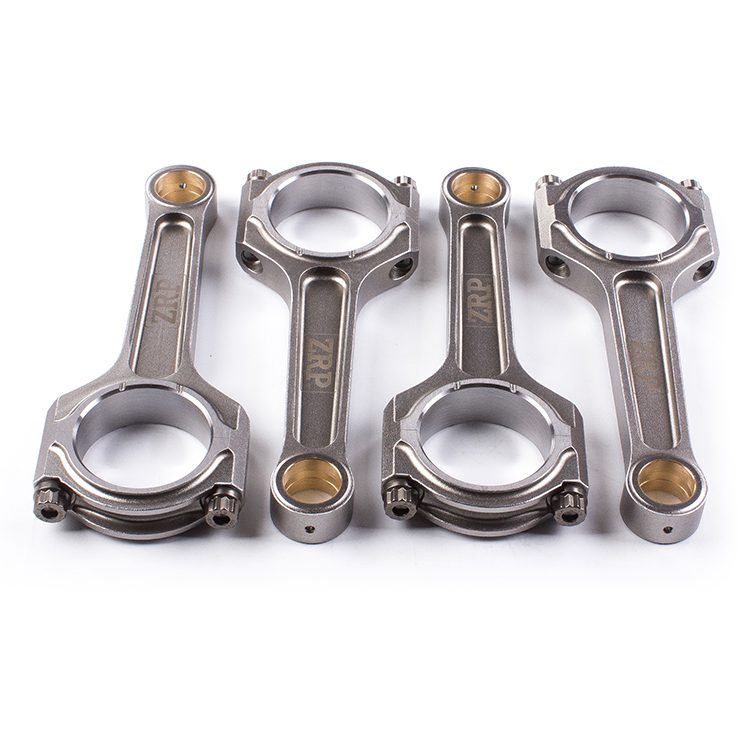

ZRP RODS – CONNECTING ROD SET FORD 2.0L ECOBOOST HD SERIES

The I-Beam connecting rods for the Ford 2.0L Duratec are made from high-strength 4340 steel and are designed for high performance, extreme durability, and extra rigidity. The bushings are made from AMPCO 18 material for excellent wear and fatigue resistance and feature a radial oil reservoir groove. They are shot peened to relieve material stress and multi-stage heat treated to increase rigidity. Tight manufacturing tolerances ensure a perfect fit while optimizing oil clearances. Bending and twisting are strictly controlled. Each connecting rod includes ARP 2000 plug fasteners rated at 220,000 psi, with optional ARP L19 material rated at 260,000 psi available as an upgrade. The entire kit comes with ARP moly and complete installation instructions.
Additional machiningCentering sleeves for a perfect fit and accurate reassemblyEmbossed cap with edge for improved big end integrity in extreme applicationsThrust face grooves for weight reductionTechnical features of ZRP connecting rodsI-shape for extra rigidityTwo-piece forging for high strengthShot peening for improved fatigue lifeMagnaflux Inspection ensures that the consistency of the forged material meets our high quality standardsDouble-rib caps for increased supportMulti-stage heat treatment for maximum Strength, dimensional stability, and fatigue resistance.CNC-machined for superior tolerances, accurate to 0.0002″Center-to-center is held to within 0.001″Finite Element Analysis (FEA) Computer-generated stress analysis of connecting rodsOptimal balance for weight-matched sets of ± 1 gramAdditional InformationEngine Number HUBA,JZDAApplication 2.5L 20v Focus RS MKIINotes: Non-tapered pin end.Bolt Size 3/8”I-BEAM ShapeLength (CC) 143.00Pin Size 11.00pmBig Bore 52.98BE Width 25.65Weight 551 gSET of 5Fastening Grade ARP2000Standard SeriesWeight 551 g
