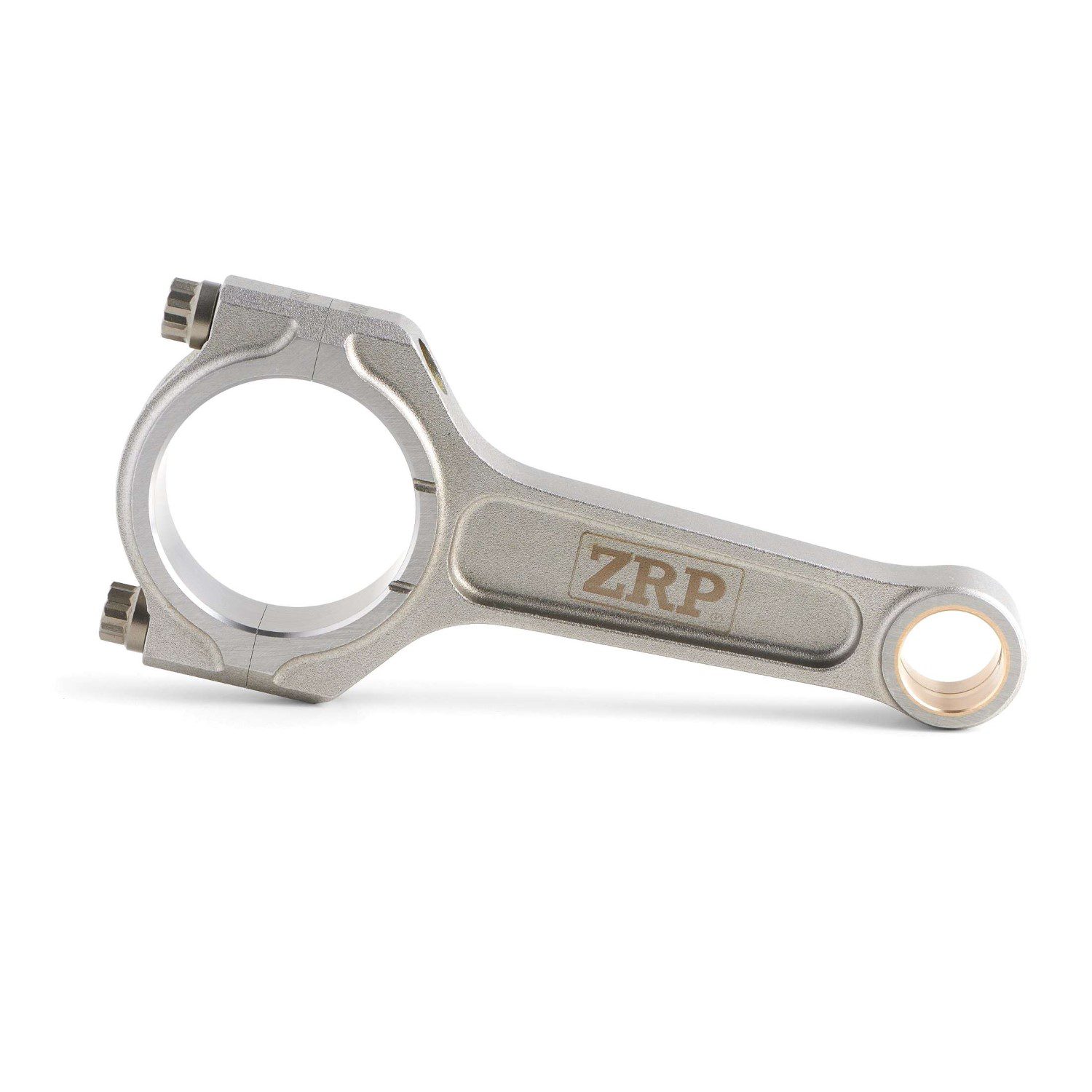

ZRP RODS – SET CONNECTING RODS BMW M3 E36 S50B32 / S52B32 I-BEAM

The I-Beam “Heavy Duty” series connecting rods for the Honda K24 are designed for high-horsepower applications. They are constructed from the finest raw materials, high-strength 4340-EN24T steel, with a specially optimized shape for high performance and extreme durability. The “straight cut” pin end increases durability, so they can only be used in conjunction with aftermarket pistons. The bushings are made from AMPCO 18 material for excellent wear and fatigue resistance and have a radial groove that serves as an oil reservoir. They are shot-peened to relieve stress from the material and multi-stage heat treated to increase rigidity. Tight manufacturing tolerances ensure a perfect fit while optimizing oil clearances. Bending and torsion are strictly controlled. Each connecting rod includes ARP 2000 3/8″ plug fasteners rated at 220,000 psi. Optional ARP L19 260,000 psi material is available as an upgrade. The entire kit comes with ARP moly and complete assembly instructions.
Additional machiningCentering sleeves for a perfect fit and accurate reassemblyEmbossed cap with edge for improved big end integrity in extreme applicationsThrust face grooves for weight reductionTechnical features of ZRP connecting rodsTwo-piece forging for high strengthI-shape for extra rigidityShot peening for improved fatigue lifeMagnaflux Inspection ensures that the consistency of the forged material meets our high quality standardsDouble-rib caps for increased supportMulti-stage heat treatment for maximum strength, dimensional stability, and fatigue resistance.CNC machined for superior tolerances, accurate to 0.0002″Center-to-center is held to a tolerance of 0.001″Finite Element Analysis (FEA) Computer-generated stress analysis of connecting rodsOptimal balance for weight-matched sets of ± 1 gramAdditional InformationEngine Number K24Application 2.4L K24Recommended Use Notes: High RPM EnginesBolt Size 3/8”Shape I-BEAMLength (CC) 152.00Pin Size 10.00pmBig Bore 51.00Width BE 19.81Weight Gr. 534SET of 4ARP2000 fastening gradeHEAVY DUTY SeriesWeight 534
