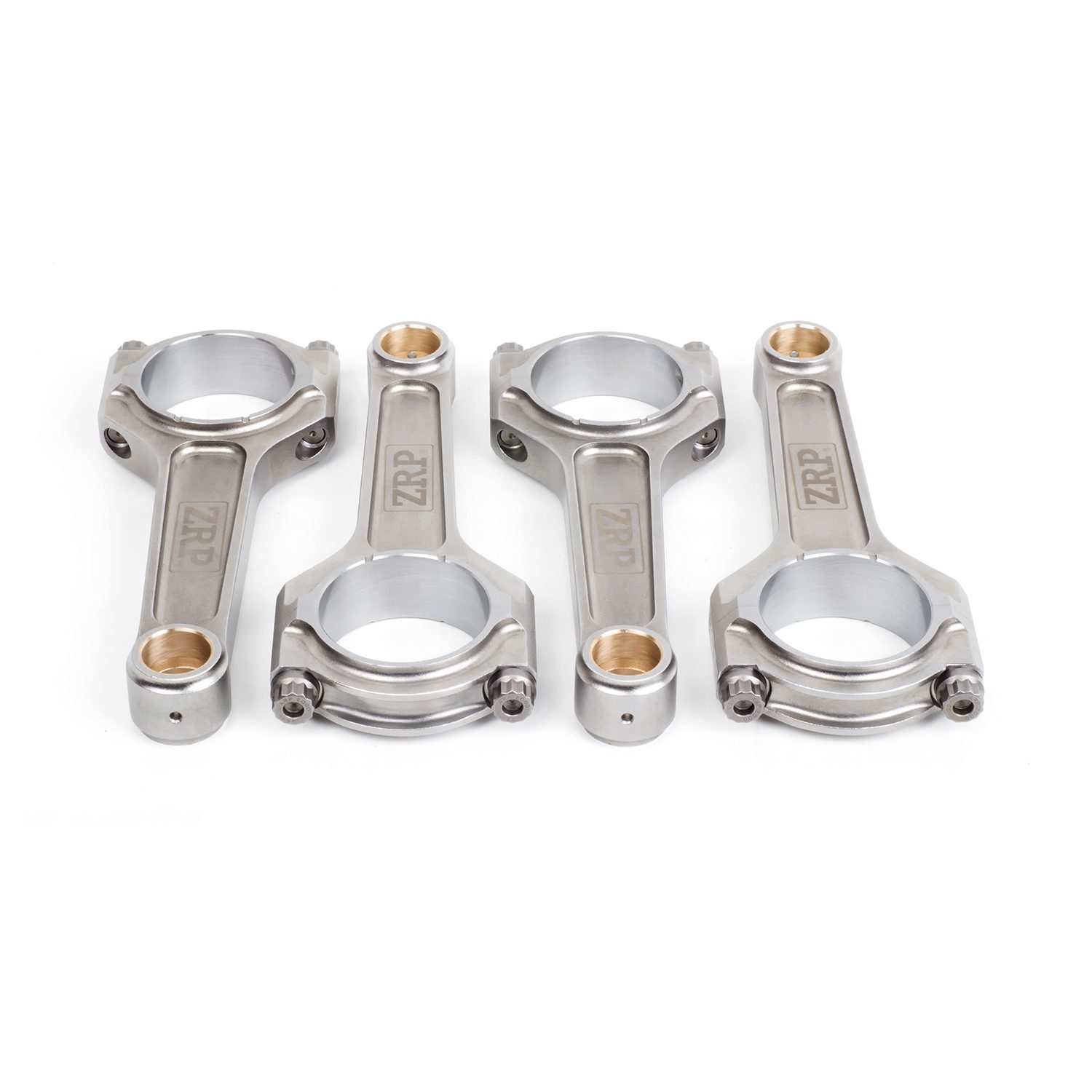

ZRP RODS – CONNECTING ROD SET VW / AUDI 2.0 TSI EA888 GEN3 / GEN 4 I-BEAM

I-Beam connecting rods for Audi/VW 2.0L TFSI EA888 Gen.3-Gen.4 (chain-driven) are made from high-strength 4340 steel and are designed for high performance, extreme durability, and extra rigidity. They feature “straight cut” pin ends for increased durability, so they can only be used in conjunction with aftermarket pistons. The bushings are made from AMPCO 18 material for excellent wear and fatigue resistance and have a radial oil reservoir groove. They are shot peened to relieve material stress and multi-stage heat treated to increase rigidity. Tight manufacturing tolerances ensure a perfect fit while optimizing oil clearances. Bending and torsion are strictly controlled. Each connecting rod includes ARP 2000 plug fasteners rated at 220,000 psi, with optional ARP L19 material rated at 260,000 psi available as an upgrade, and the entire kit comes with ARP moly and complete installation instructions.
Additional machiningStraight-cut pin end: suitable for aftermarket pistons.Centering sleeves for a perfect fit and accurate reassemblyRibbed cap relief for improved big end integrity in extreme applicationsThrust face grooves for weight reductionTechnical features of ZRP connecting rodsI-shape for extra rigidityTwo-piece forging for high strengthShot peening for improved fatigue lifeMagnaflux Inspection ensures that the consistency of the forged material meets our high quality standardsDouble-rib caps for increased SupportMulti-stage heat treatment for maximum strength, dimensional stability, and fatigue resistance.CNC machining for superior tolerances, accurate to 0.0002″Center-to-center is maintained to a tolerance of 0.001″Finite Element Analysis (FEA) Computer-generated stress analysis of connecting rodsOptimal balance for weight-matched sets of ± 1 gramAdditional InformationEngine numberCADA, CAEA, CAEB, CAWB, CCTA, CCZA, CCZC, CDNB, CDNC, CDZA, CESA, CETA, CHHC, CJXC, CJXF, CJXG, CNBC, CNCB, CNCD, CNCE, CPMA, CPSA, CUHA, CULB, CULC, CVKB, CVLA, CWZA, CYNB, CYPA, CYRB, DAXB, DJHA, DKTA, DKTB, DLBA, DLG, DLVB, DMSA, DMSB, DMT, DNFC, DNNA, DNPA, DNUE, DRFA, DRXA, DRYAApplication2.0L TSI (EA888) Gen.3-Gen.4ClipboardNon-rifle hollow bars, non-tapered pin endBolt size3/8″ShapeI-BEAMLength (CC)144.00Pin size23.00Big Boost50,60BE Width21.85Weight Gr.508SET of4Degree of fasteningARP2000SeriesStandard seriesWeight500
