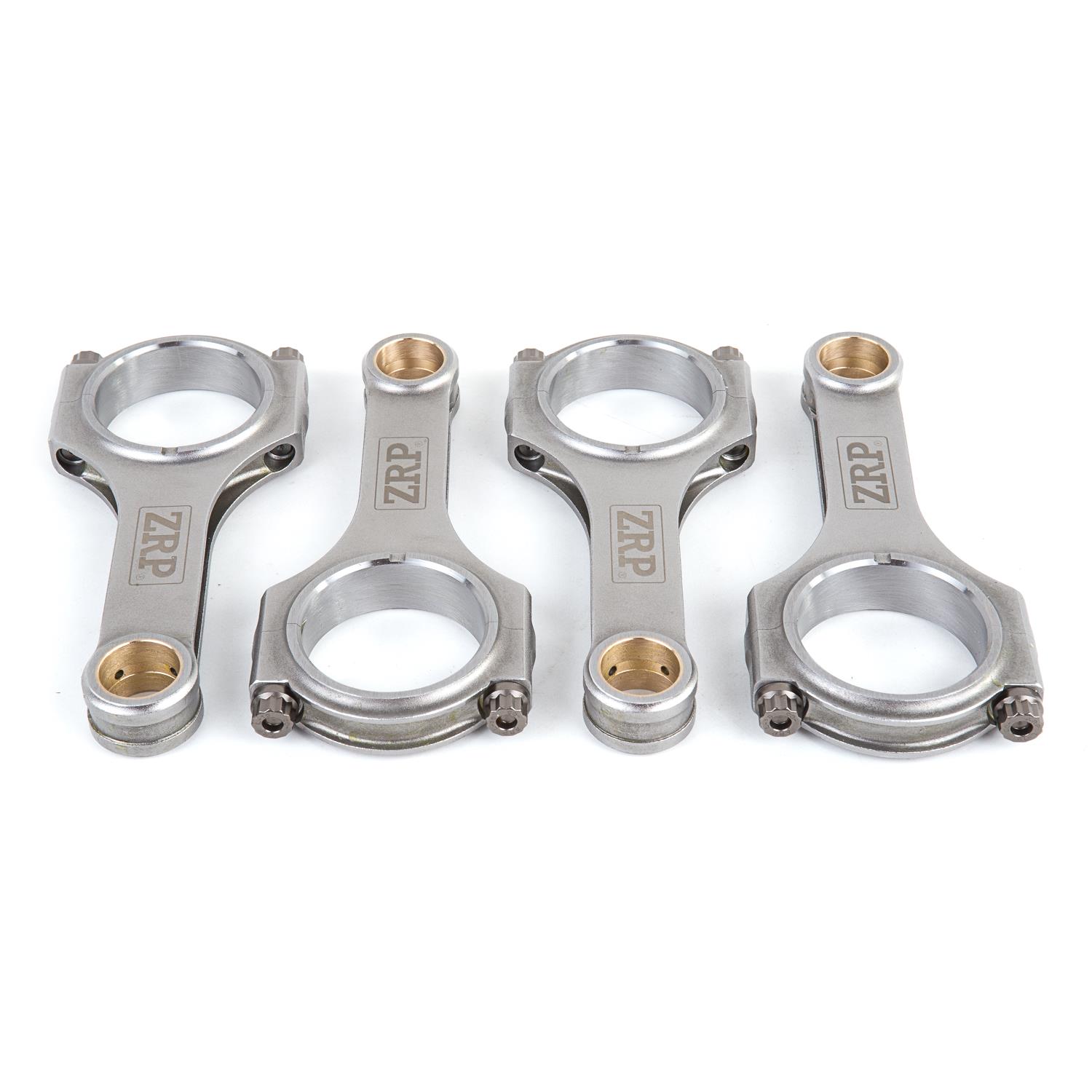

ZRP RODS – SUBARU EJ20 / EJ205 / EJ25 H-BEAM CONNECTING ROD SET

The H-Beam connecting rods for Audi/VW 2.0L TFSI (belt-drive) are made from high-strength 4340 steel and designed for high performance and extreme durability. They feature “straight-cut” pin ends for increased durability, so they can only be used in conjunction with aftermarket pistons. The pin end is also “ribbed” to minimize distortion under heavy inertial loads while saving any excess weight. The bushings are made from AMPCO 18 material for excellent wear and fatigue resistance and have a radial groove that serves as an oil reservoir. They are shot peened to relieve stress from the material and multi-stage heat treated to increase rigidity. Tight manufacturing tolerances ensure a perfect fit while optimizing oil clearances. Bending and torsion are strictly controlled. Each rod includes ARP 2000 cap fasteners rated at 220,000 psi, optional ARP L19 material rated at 260,000 psi is available as an upgrade, and the entire kit comes with ARP moly and complete installation instructions.
Additional MachiningStraight-cut pin end: suitable for aftermarket pistons.Retaining sleeves for a perfect fit and accurate reassembly.Protective cone with lip for improved rod integrity in extreme applications.Thrust surface grooves to reduce weight.Technical Features of ZRP Connecting RodsTwo-piece forging for high strengthShot peening for improved fatigue lifeMagnaflux Inspection ensures that the forging material consistency meets our high quality standards.Double-rib endcaps for increased support.Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue resistance.CNC-machined for superior tolerances, accurate to 0.0002″Center-to-center is held to within 0.001″Finite Element Analysis (FEA) Computer-generated stress analysis of connecting rodsOptimal balance for weight-matched sets of ± 1 gramAdditional InformationEngine Number BHZ, BYD, BZC, CDLA, CDLB, CDLC, CDLF, CDLG, CDMA, CDZA, BWJApplication 2.0L TFSI/TSI EngineNotes: Non-tapered pin endBolt Size 3/8″Shape H-BEAMLength (CC) 144.00Pin Size 9.00pmBig Bore 50.60Width BE 24.90Weight 475 gSet of 4Clamping Grade ARP2000Standard SeriesWeight 475 g
