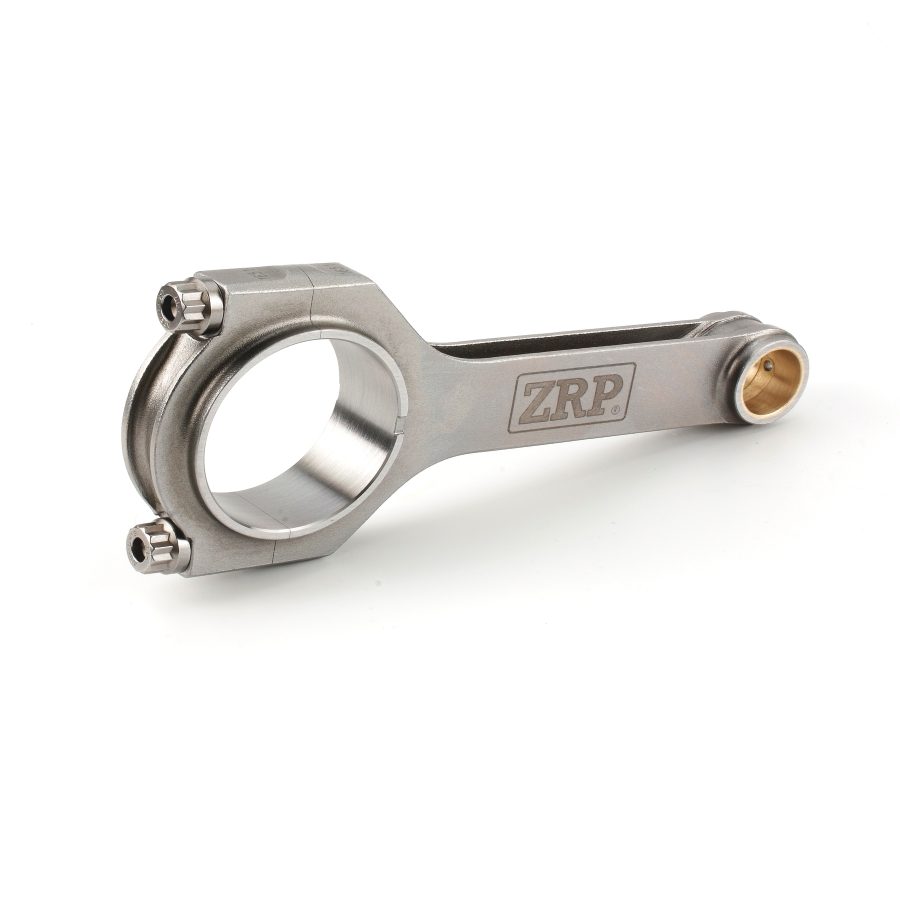

ZRP RODS – HONDA B18C H-BEAM CONNECTING ROD SET

Honda B18C H-Beam connecting rods are made from high-strength 4340 steel and are designed for high performance and extreme durability. This “ultra-light” design combines lightweight performance with proven reliability at extended rpm. The bushings are made from aluminum-silicon-bronze and aluminum-silicon-bronze and have a radial groove that serves as an oil reservoir. These connecting rods feature a ribbed pin end, which minimizes pin end distortion under heavy inertial loads while saving excess weight. They are shot peened to relieve stress from the material and multi-stage heat treated to increase rigidity. Tight manufacturing tolerances ensure a perfect fit while optimizing oil clearances. Bending and twisting are strictly controlled. Each connecting rod includes ARP 2000 plug fasteners rated at 220,000 psi, with optional ARP L19 material rated at 260,000 psi available as an upgrade, and the entire kit comes with ARP moly and complete installation instructions.
Additional machiningCentering sleeves for a perfect fit and accurate reassemblyEmbossed cap with edge for improved big end integrity in extreme applicationsThrust face grooves for weight reductionTechnical features of ZRP connecting rodsTwo-piece forging for high strengthShot peening for improved fatigue lifeAluminum-silicon/bronze bushing with radial groove.Magnaflux Inspection ensures that the consistency of the forged material meets our high quality standards.Double-rib caps for increased support.Multi-stage heat treatment for maximum strength. dimensional stability and fatigue resistance.CNC machined for superior tolerances, accurate to 0.0002″Center-to-center is held to a tolerance of 0.001″Finite Element Analysis (FEA) Computer-generated stress analysis of connecting rodsOptimal balance for weight-matched sets of ± 1 gramAdditional InformationEngine Number B18C1 / B18C2 / B18C5 / B18C7Application 1.8L B18Notes Recommended Use: Naturally AspiratedBolt Size 3/8”Shape H-BEAMLength (CC) 138.00Pin Size 21.00Big Bore 48.00Width BE 21.79Weight 405 gSet of 4ARP2000 Fastening GradeStandard SeriesWeight 405 g
