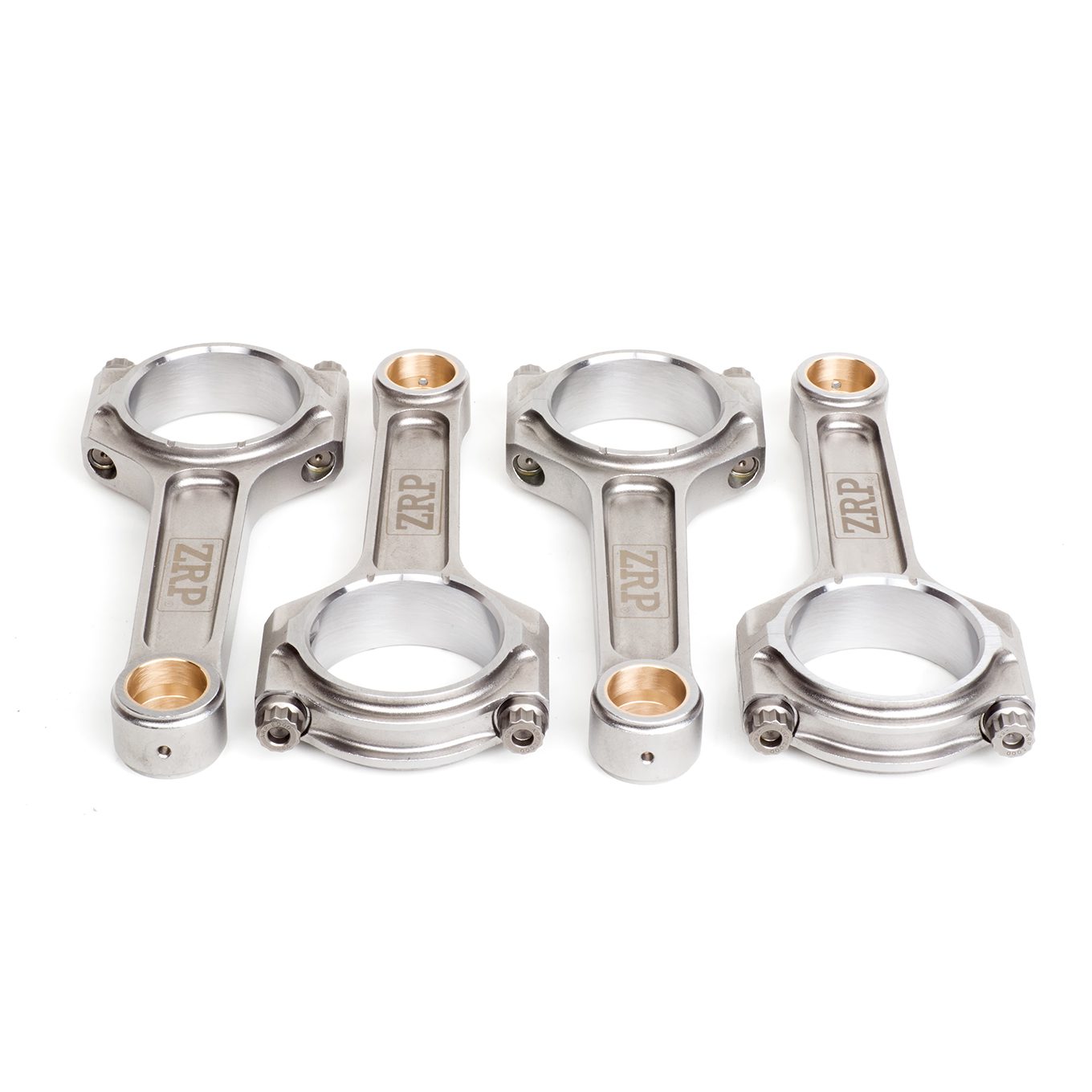

ZRP RODS – CONNECTING RODS SET 2.0L 16V LANCIA DELTA INTEGRALE / FIAT COUPE I-BEAM

The I-Beam connecting rods for the Lancia 2.0L 16v Delta Integrale are made from high-strength 4340 steel and are designed for high performance, extreme durability, and extra rigidity. The bushings are made from AMPCO 18 material for excellent wear and fatigue resistance and feature a radial oil reservoir groove. They are shot peened to relieve stress on the material and heat treated in multiple stages to increase rigidity. Tight manufacturing tolerances ensure a perfect fit while optimizing oil clearances. Bending and torsion are strictly controlled. Each connecting rod includes ARP 2000 cap fasteners rated at 220.00 psi; optional ARP L19 material is available as an upgrade. The connecting rod kit is supplied with ARP moly and complete assembly instructions.
Additional MachiningCentering sleeves for a perfect fit and accurate reassemblyEmbossed cap with edge for improved big end integrity in extreme applicationsThrust face grooves for weight reductionTechnical Features of ZRP Connecting RodsTwo-piece forging for high strengthShot peening for improved fatigue lifeMagnaflux Inspection ensures that the consistency of the forged material meets our high quality standardsDouble-rib caps for increased supportMulti-stage heat treatment for maximum strength, dimensional stability, and fatigue resistance.CNC machining for superior tolerances, Accurate to 0.0002″Center-to-center is held to within 0.001″Finite Element Analysis (FEA) Computer-generated stress analysis of connecting rodsOptimal balance for weight-matched sets of ± 1 gramAdditional InformationEngine Number 832CS / M16AT / M20L4TApplication 2.0L 16VBolt Size 3/8”Shape I-BEAMLength (CC) 145.00Pivot Size 22.00Big Bore 53.92Width BE 25.70Weight: 557 gSet of 4ARP2000 Fastening GradeStandard SeriesWeight: 557 g
