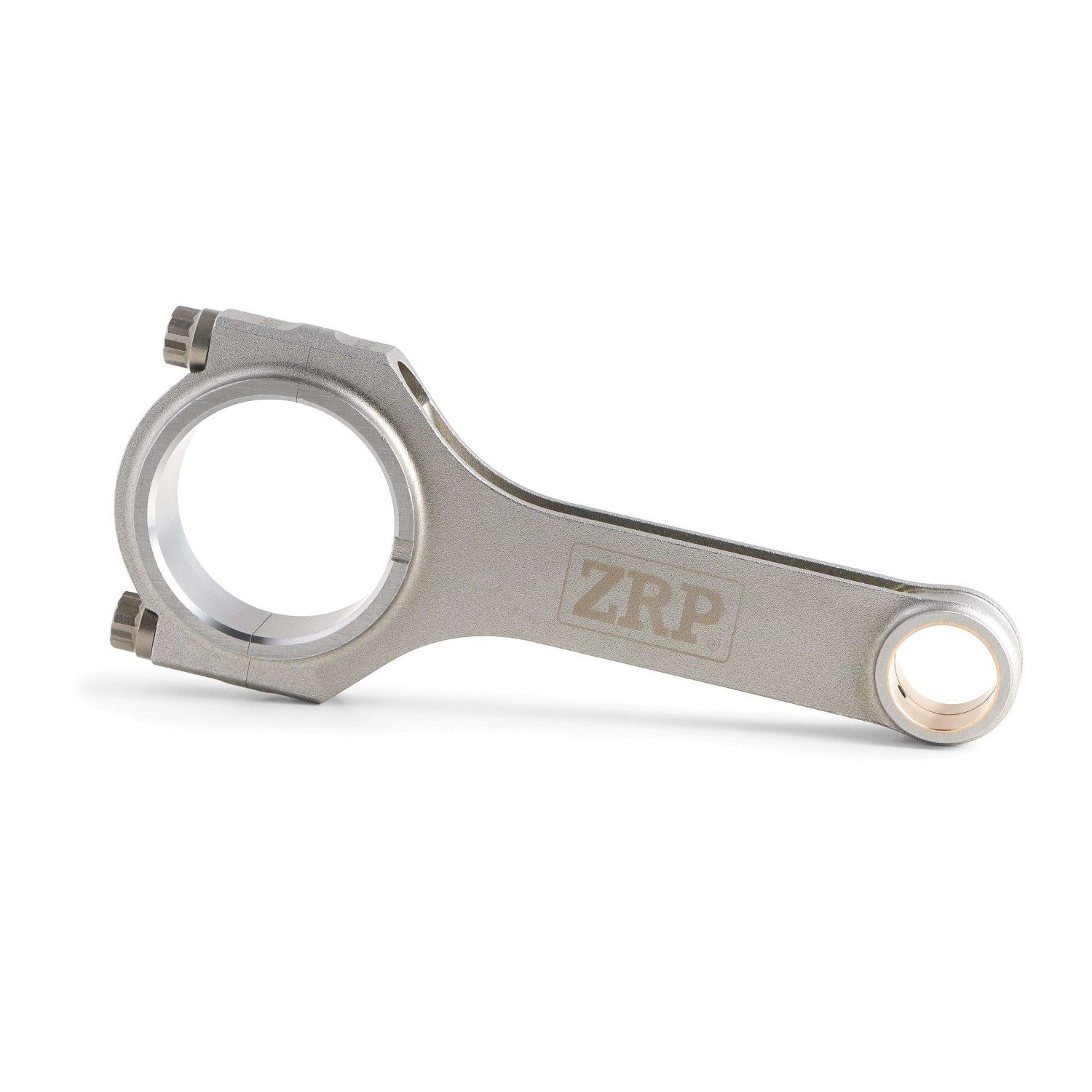

ZRP RODS – BMW M5 E34 S38B38 H-BEAM CONNECTING RODS SET

The BMW M5 S38 3.8L H-Beam connecting rods are made from high-strength 4340 steel and are designed for high performance and extreme durability. The bushings are made from aluminum-silicon/bronze and have a radial groove that serves as an oil reservoir. These connecting rods feature a ribbed pin end, which minimizes pin end distortion under heavy inertial loads while saving excess weight. They are shot peened to relieve material stress and multi-stage heat treated to increase rigidity. Tight manufacturing tolerances ensure a perfect fit while optimizing oil clearances. Bend and twist are tightly controlled. Each connecting rod includes ARP 2000 plug fasteners rated at 220,000 psi, with optional ARP L19 material rated at 260,000 psi available as an upgrade. The entire kit comes with ARP moly and complete installation instructions.
Additional MachiningCentering sleeves for a perfect fit and accurate reassemblyEmbossed cap with edge for improved big end integrity in extreme applicationsThrust face grooves for weight reductionTechnical Features of ZRP Connecting RodsTwo-piece forging for high strengthShot peening for improved fatigue lifeMagnaflux Inspection ensures that the consistency of the forged material meets our high quality standardsDouble-rib caps for increased supportMulti-stage heat treatment for maximum strength, dimensional stability, and fatigue resistance.CNC machining for superior tolerances, Accurate to 0.0002″Center-to-center is held to a tolerance of 0.001″Finite Element Analysis (FEA) Computer-generated stress analysis of connecting rodsOptimal balance for weight-matched sets of ± 1 gramAdditional InformationEngine Number S38B38Application 3.8 LBolt Size 3/8″Shape H-BEAMLength (CC) 142.50Pivot Size 22.00Big Bore 52.00Width BE 24.00Weight 535 gSET of 6Locking Grade ARP2000Standard SeriesWeight Gr. 535
