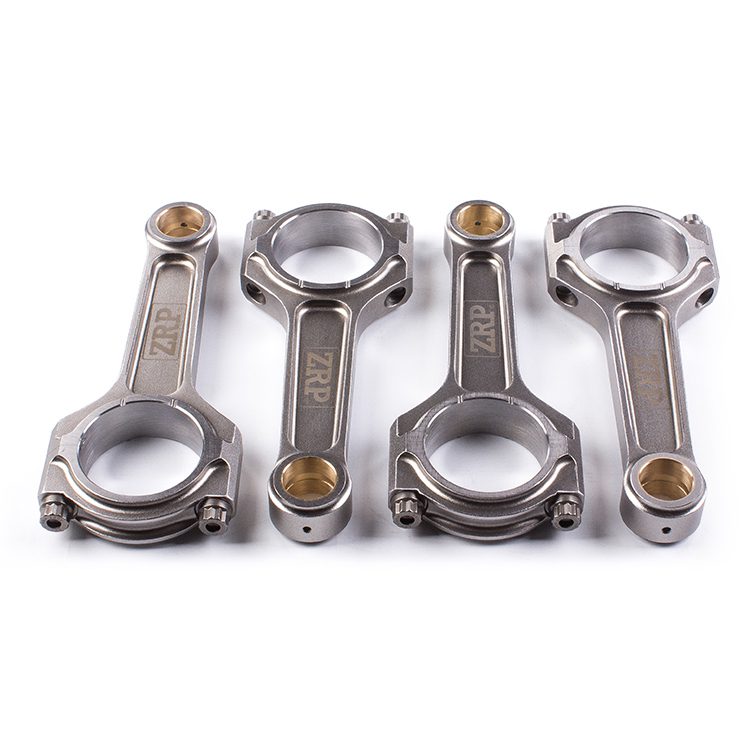

ZRP RODS – SET CONNECTING RODS BMW M3 E30 S14B23 / S14B25 HD SERIES

The I-Beam Series “Heavy Duty” connecting rods for the Mitsubishi 4B11 EVO They are constructed from the finest raw materials, high-strength 4340-EN24T steel, with a specially optimized shape for high performance and extreme durability. The bushings are made from an aluminum/silicon/bronze alloy and feature a radial oil reservoir groove. They are shot-peened to relieve material stress and multi-stage heat treated to increase rigidity. Tight manufacturing tolerances ensure a perfect fit while optimizing oil clearances. Bend and twist are tightly controlled. Each connecting rod includes ARP 2000 3/8″ plug fasteners rated at 220,000 psi. Optional ARP L19 material rated at 260,000 psi is available as an upgrade. The entire kit comes with ARP moly and complete assembly instructions.
Additional machiningCentering sleeves for a perfect fit and accurate reassemblyEmbossed cap with edge for improved big end integrity in extreme applicationsThrust face grooves for weight reductionTechnical features of ZRP connecting rodsI-shape for increased rigidity.Two-piece forging for high strengthShot peening for improved fatigue lifeMagnaflux Inspection ensures that the consistency of the forged material meets our high quality standards.Double-rib caps for increased support.Multi-stage heat treatment for maximum strength, dimensional stability, and fatigue resistance.CNC machined for superior tolerances, accurate to 0.0002″Center-to-center is held to a tolerance of 0.001″Finite Element Analysis (FEA) Computer-generated stress analysis of connecting rodsOptimal balance for weight-matched sets of ± 1 gramAdditional InformationEngine Number 4B11Application 2.0L 4B11Bolt Size 3/8”Shape I-BEAMLength (CC) 143.71Pin Size 11.00pmBig Bore 54.99Width BE 21.87Weight 483 gSET of 4ARP2000 fastening gradeHEAVY DUTY SeriesWeight 483g
