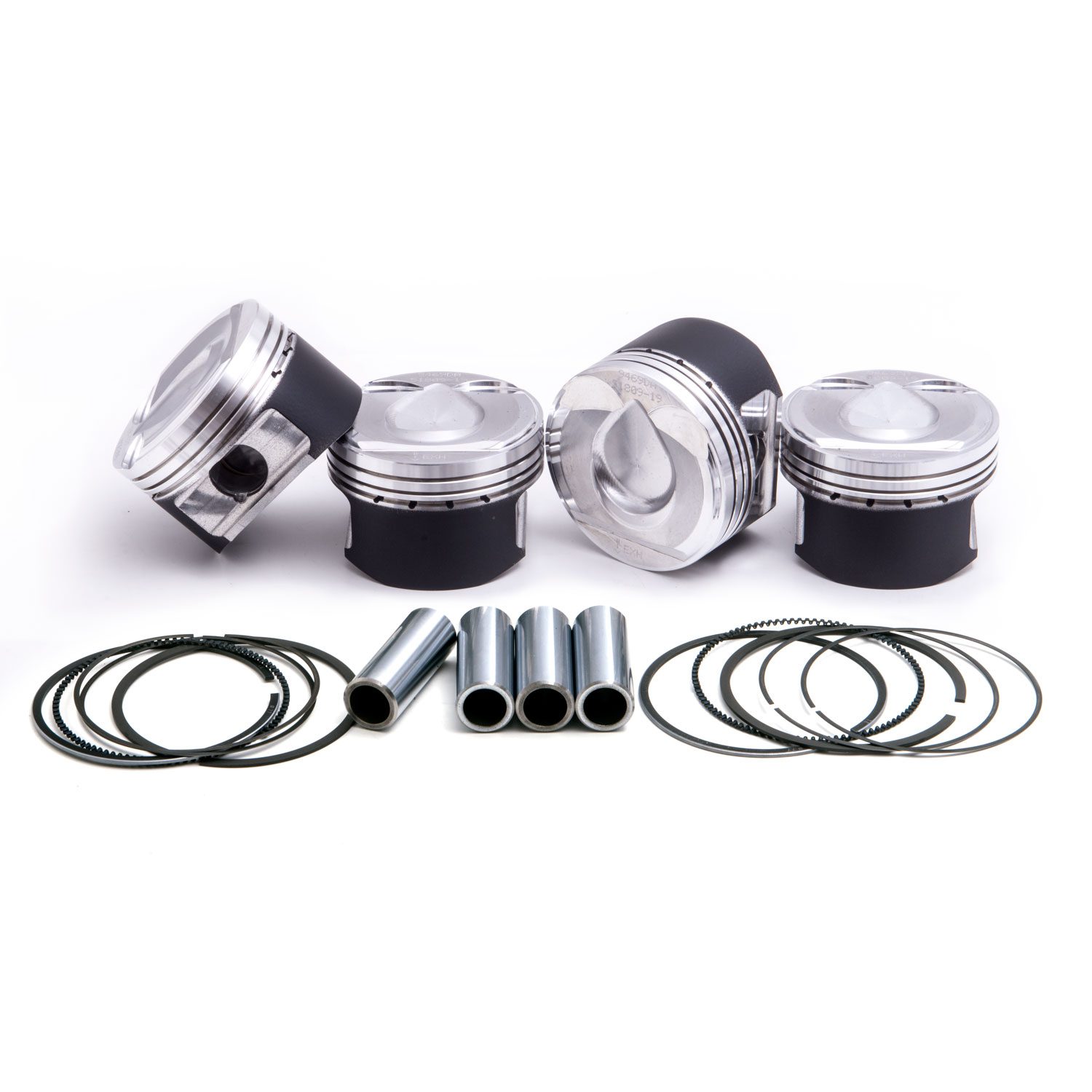

ZRP RODS – PISTONS SET PEUGEOT 207RC / MINI R56 1.6L TURBO EP6 / BMW

Mini Cooper EP6 pistons are designed for mild to high-performance tuning, primarily for road racing or club cars looking to develop their engines for high mileage and/or street use. Designed by ZRP engineers and manufactured in Germany from a high-silicon, low-expansion 4032 (T6) alloy. This allows the engine builder to use a closer piston-bore clearance, resulting in better sealing. This minimizes the slapping noise during cold starts, common among engines using forged pistons, ensuring quiet operation and low oil consumption.
We chose a round-skirt design with a lower reinforcing band, with oversized and deeper valve pockets to allow the use of high-lift camshaft profiles. They feature offset pins for quiet operation, and the wrist pins are made of 9310 alloy. Other features include anti-knock grooves to protect the first rings, and a gas pressure accumulator groove for improved ring sealing and vibration reduction. A pack of premium Japanese-quality 1.00 mm x 1.20 mm x 2.80 mm rings is included.*Note: This piston kit is suitable for the 1.6-liter Mini Cooper R56, Citroen DS3, and Peugeot 207 RC.Product Features and DesignAnti-knock grooves for long life and high performanceGas pressure accumulator groove in the second ring for increased wear resistance.Horizontal slots in the pin hole designed to allow oil to penetrate between the pin and the pin hole area.Precision CNC machined ring groovesHigh-silicon/low-expansion 4032-T6 alloyHoned pin holes3D piston crown specifically designed for combustion chamber requirementsRound skirt with lower reinforcement band for high HP/boost applicationsValve pockets designed to accommodate oversized valves and high-revving camshafts Pistons designed to optimize squish for longer engine life and increased power potentialOptional coatings available upon request”Blast Off Bronze” Thermal Barrier Coating”Stealth Black” Moly Side-Skirt and Under-Crown CoatingAdditional InformationApplication 1.6L EP6Bore Sizes 77.00mm , 77.50mmWeight Gr. 246 , 252Stroke 85.80mmOffset Ratio 10.5:1OEM Offset Ratio 10.5:1Comp. height28.50mmAction 138.55 mmPin diameter 20.00 mmDeck Clearance OEMCCS Dome -0.55CCSet of rings 21-GNH7700,21-GNH7750Wrist Pin Pn WP051
