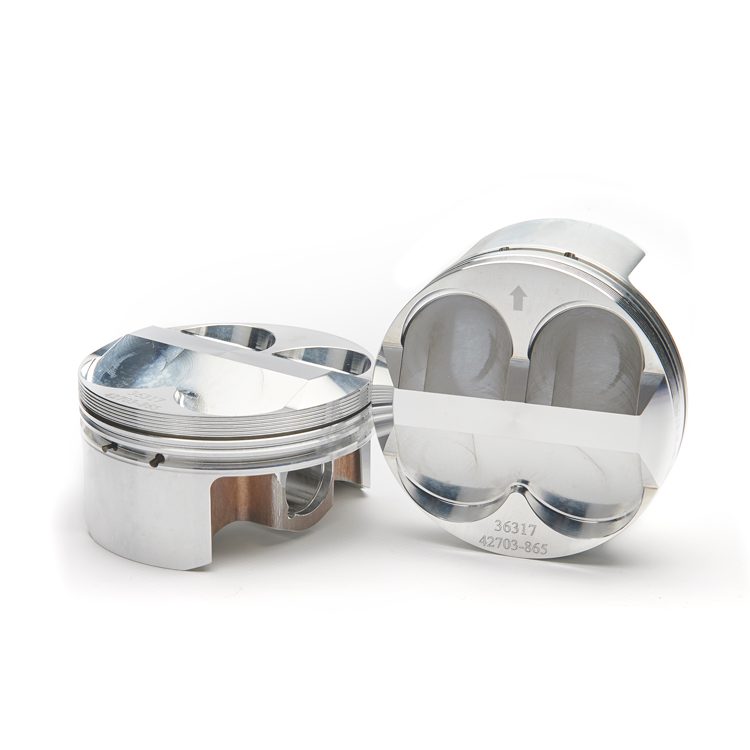

ZRP RODS – PISTONS SET OPEL 2.0L 16V C20XE STROKER 2.1L

THE OPEL 2.0L 16V C20XE PISTONS ARE DESIGNED FOR MODERATE TO HIGH-PERFORMANCE TUNING, PRIMARILY FOR ROAD RACING OR CLUB CARS LOOKING TO DEVELOP THEIR ENGINES FOR HIGH MILEAGE AND/OR STREET USE. DESIGNED BY ZRP ENGINEERS AND MANUFACTURED IN GERMANY FROM A HIGH-SILICON, LOW-EXPANSION 4032 (T6) ALLOY. THIS ALLOWS THE ENGINE BUILDER TO USE A TIGHTER PISTON-BORE CLEARANCE, RESULTING IN BETTER SEALING. THIS MINIMIZES THE SLAPPING NOISE DURING COLD STARTS, COMMON AMONG ENGINES USING FORGED PISTONS, ENSURING QUIET OPERATION AND LOW OIL CONSUMPTION.
