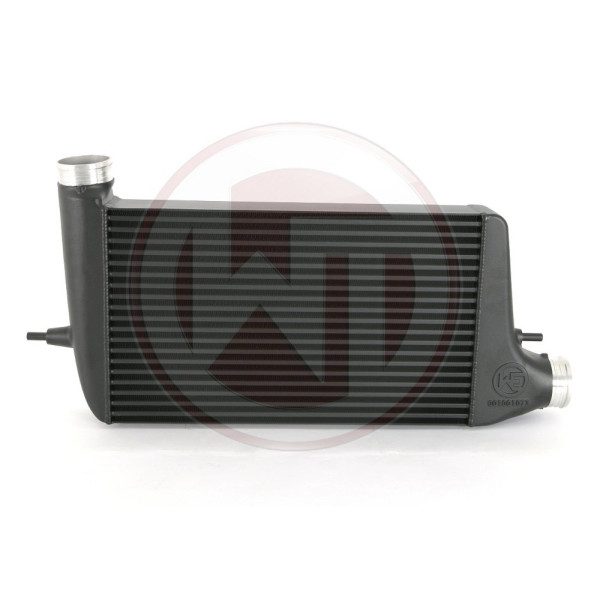

Competition intercooler kit from Wagner Tuning for the Mitsubishi Lancer EVO X. Prepared for 2.5-inch piping.
The high-performance intercooler has the following mesh dimensions: 530 mm x 318 mm x 100 mm. It offers a 19% larger flow surface and a 70% larger charge air volume than the original intercooler. The newly developed high-performance racing mesh is very light, so the complete intercooler weighs only 10.3 kg. The intercooler end boxes are made of cast aluminum and have been optimized using CAD flow analysis. Integrated air baffles in the inlet ensure even filling of the intercooler. The connection diameter at the inlet and outlet has been enlarged to Ø70 mm. The kit includes two reinforced silicone hoses (hose connection diameter Ø63.5 mm). The result is excellent cooling properties with the lowest possible backpressure. This kit is therefore perfect for racing. Installation takes place at the original mounting points and is easy (100% plug & play). Optimal cooling of the charged air with a significant increase in performance.
OEM intercooler: cooling surface 1421 cm² / charge air volume 9.9 l
WAGNER TUNING intercooler: cooling surface 1685 cm² / charge air volume 16.9 l

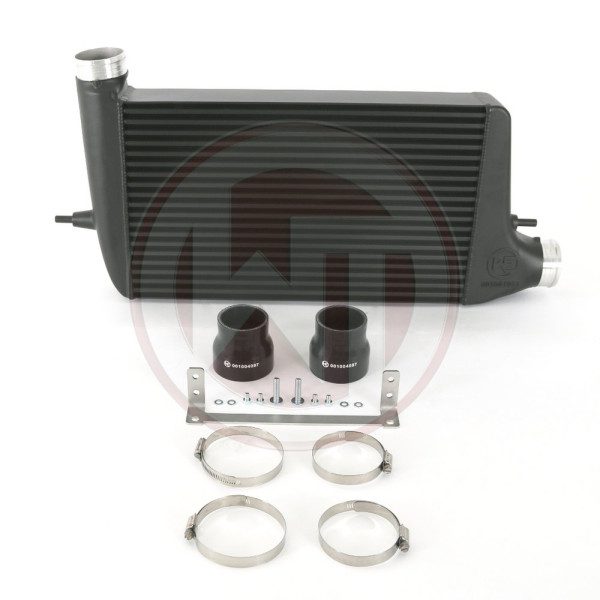

Scope of delivery:
– 1 intercooler
– 2 silicone hoses (Ø 70 mm – Ø 63.5 mm)
– 1 assembly material
– 1 assembly instruction
