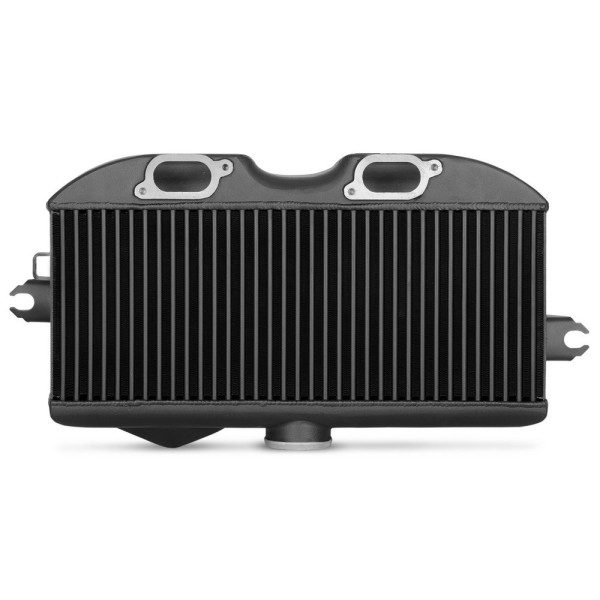

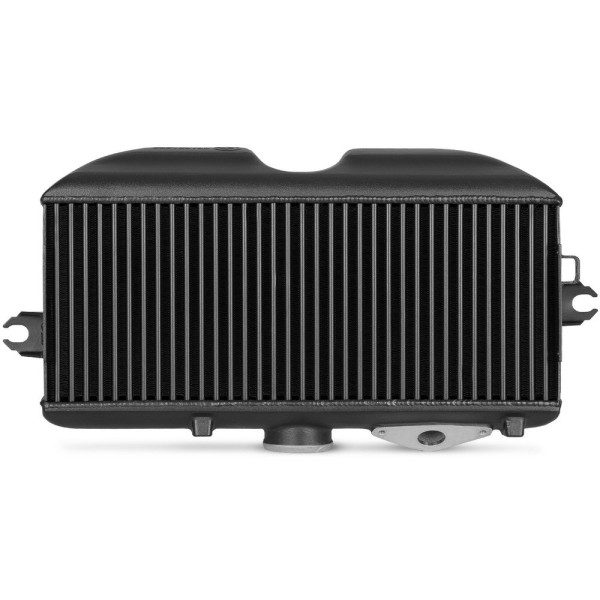

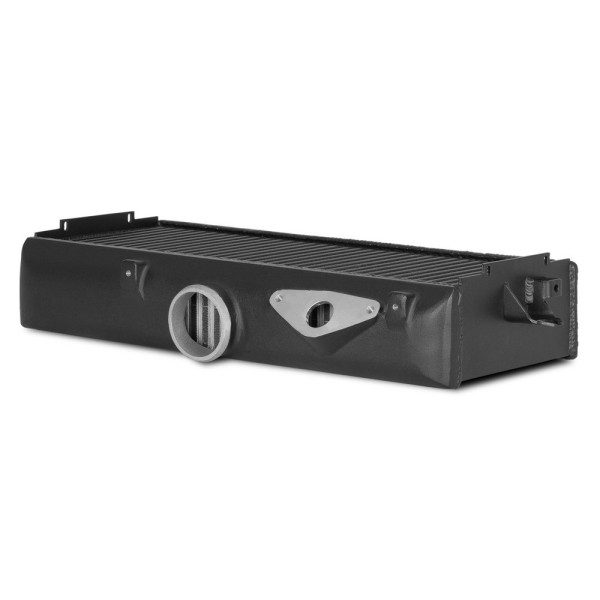

High-performance racing intercooler kit from Wagner Tuning for the Subaru WRX STi.
Suitable for the following vehicles:
Subaru WRX Sti GD CE 2.0 Turbo 195KW / 265PS (2002-2005) RHD
* Plug-and-play only, suitable for right-hand drive vehicles
The high-performance intercooler has the following mesh dimensions: 530 mm x 205 mm x 95 mm = 10.3 liters. It offers a 23.6% larger flow surface and a 95.5% larger charge air volume than the original intercooler. A new type of high-performance racing mesh (tubular fin) is used, developed specifically for the Subaru WRX STi. The die-cast aluminum end boxes were created in CAD and optimized for the best possible internal airflow using CFD simulations. The intercooler inlets and outlets were not modified. Intercooler backpressure may be minimally reduced compared to the standard intercooler. An anti-corrosion coating with thermal conductivity protects the intercooler from environmental influences, ensuring continuous, optimal cooling and a significant increase in performance. Installation is simple (plug and play) and replaces the OEM intercooler.
Dimensions of the original intercooler:
475 mm x 185 mm x 60 mm
V = 5.27 liters
A = 878.75 cm²
Dimensions of the WAGNER TUNING intercooler:
530 mm x 205 mm x 95 mm
V = 10.3 liters
A = 1086 cm²

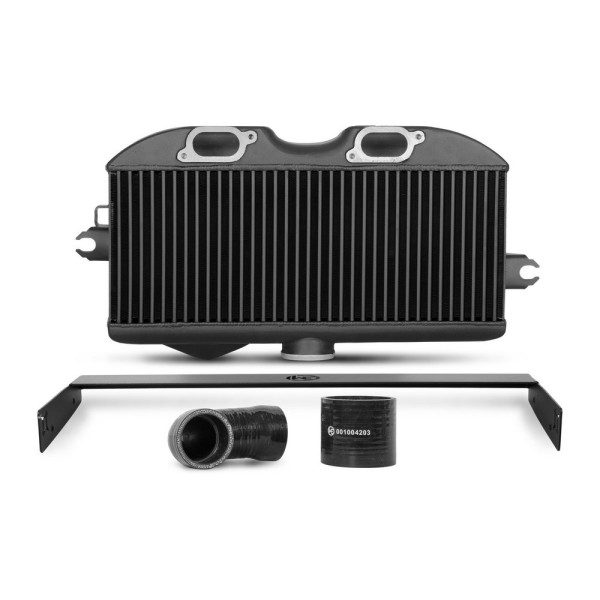

Scope of delivery:
– 1 intercooler (black coated)
– 1 air duct
– 2 silicone hoses (black)
– 1 mounting material
– 1 installation instruction assembly
