COMPETITION INTERCOOLER KIT VAG 2.0TSI (EA888 Gen.4)
Item number: 200001178

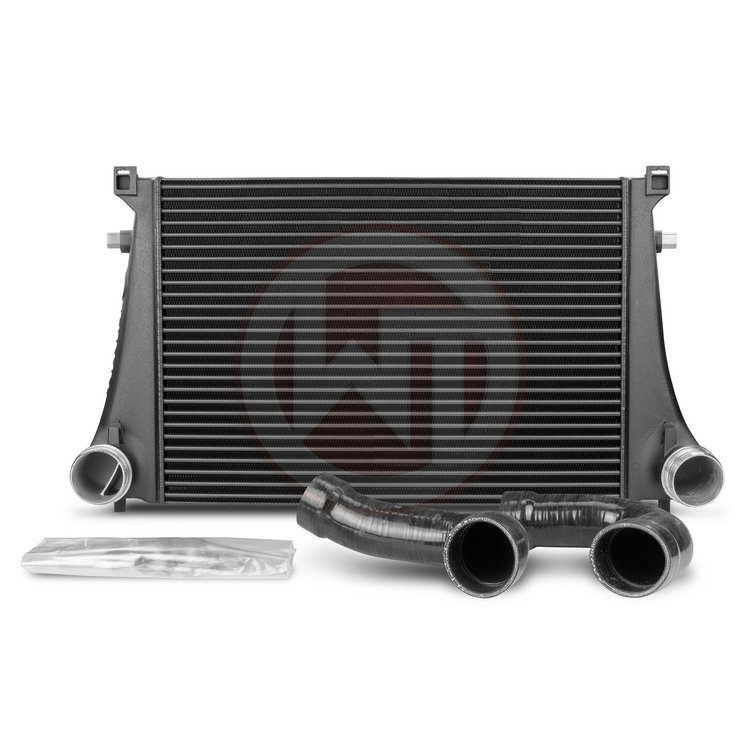

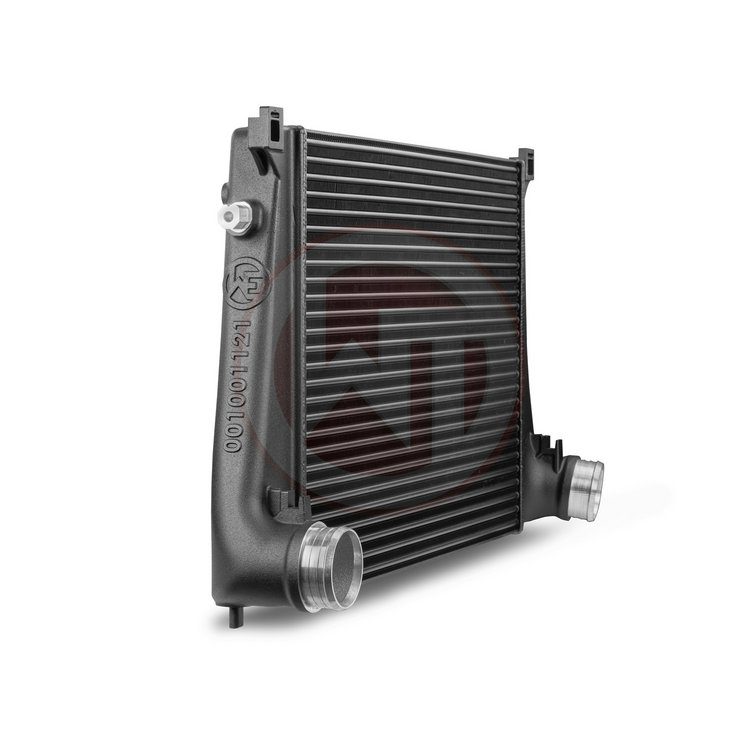

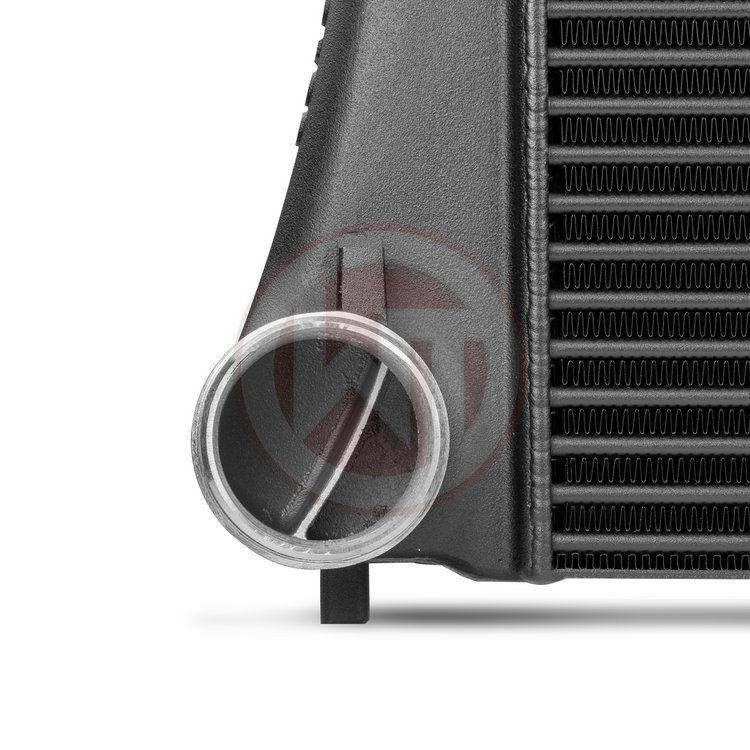

The competition intercooler has the following net dimensions (620 mm x 440 mm x 65 mm) and therefore has 17.7 liters of external charge air volume (9 liters OEM). The newly developed high-performance competition net (Tube Fine) ensures adjacent components, such as the water cooler, still have sufficient airflow and is also very lightweight. The intercooler has a total weight of just 9.2 kg. The die-cast aluminum end boxes were created in CAD and optimized for the best possible internal airflow using CFD simulations. An air duct integrated into the end box allows for homogeneous filling of the high-performance competition net. The intercooler inlets and outlets have been enlarged to 70 mm in diameter, so this kit comes with reinforced silicone hoses.
Overall, this intercooler has much lower backpressure than the standard intercooler. Additionally, all our intercoolers feature an anti-corrosion coating with thermal conductivity properties. This ensures permanent, optimal cooling with a significant increase in performance.
Installation is simple, replacing the OEM intercooler. All our products are subject to constant quality monitoring.
The WAGNERTUNING racing intercooler kit for VAG 2.0TSI (EA888 Gen. 4 engine) is suitable for the following vehicles:
Audi S3 8Y 2.0TFSI 228KW/310PS (from 10/2020 MKB: DNFB)
Audi TT 8S 45TSI 180kW/245PS (from 10/2020 MKB: DNPA)
Audi TTS 8S 235KW/320PS (from 11/2020 MKB: DNFD)
VW Golf VIII Type CD 2.0 GTI 180kW/245PS (from 08/2020 MKB: DNPA)
VW Golf VIII Type CD 2.0 GTI Clubsport 220KW/300PS (from 10/2020 MKB: DNFC)
VW Golf VIII Typ CD2.0 R 235KW/320PS (from 12/2020 MKB: DNFG)
VW Passat B8 2.0TSI 206KW/280PS (from 11/2020 MKB:DNFE)
VW Arteon (Typ 3H) 2.0TSI R 206-235KW / 280-320PS (from 12/2020 MKB: DNFE, DNFG)
VW T-Roc R 221kW/300PS (from 10/2020 MKB: DNFC)
Seat Leon IV KL Cupra TSI 4Drive 228KW/310PS (from 02/2021 MKB: DNFB)
Cupra Formentor VZ 2.0TSI 180kW / 245PS (from 03/2021 MKB: DNPA)
Cupra Formentor VZ 2.0TSI 228kW / 310PS (from 11/2020 MKB: DNFB)
Skoda Octavia 2.0 TSI RS 180kW / 245PS (from 09/2020 MKB: DNPA)
Skoda Superb 2.0TSI 206KW/280PS (from 11/2020 MKB:DNFE)
Supply:
1 intercooler
2 silicone tubes
4 hose clamps
1 fastening material
1 assembly instructions
