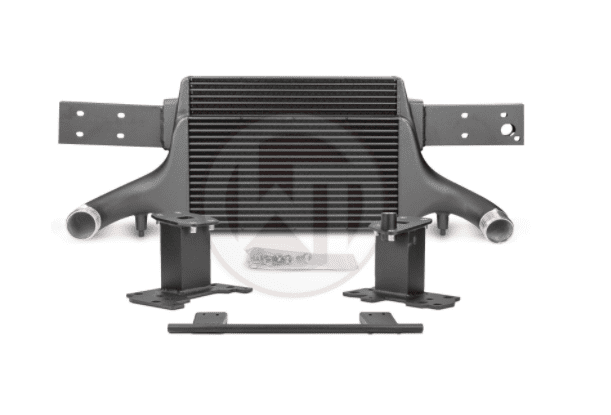

200001167 – EVO3 Competition Intercooler Kit for Audi RSQ3
Audi RSQ3 F3 294KW / 400PS 10/2019 +
The high-performance intercooler has the following net dimensions (515 mm x 367 mm x 95 mm [stepped] = 16,500 cm³) and therefore offers an 84% larger inflow area and 101% more charge air volume than the original intercooler. The newly developed high-performance competition net provides sufficient airflow to adjacent components, such as the water cooler. It is a high-quality tubular fin net with internal turbulators. The intercooler end boxes are made of cast aluminum and have been optimized using CFD flow analysis. Integrated air baffles in the inlet ensure even filling of the intercooler. This results in excellent cooling properties with the lowest possible backpressure. This makes this kit suitable for racing. Furthermore, all our intercoolers feature an anti-corrosion coating with thermal conductivity. This ensures permanent, optimal cooling with a significant increase in performance. The intercooler and the original crossmember form a stable unit and, thanks to the new high-performance racing mesh, weighs only 11.7 kg. Installation is carried out using the original mounting points and is easy (for minor adjustments, see the installation instructions). Tested up to 6 bar and pressure-stable. All our products are subject to constant quality monitoring. Thanks to the new high-performance racing mesh, only 11.7 kg. Installation is carried out using the original mounting points and is easy to perform (for minor adjustments, see the installation instructions). Tested up to 6 bar and pressure stable. All our products are subject to constant quality monitoring. Thanks to the new high-performance racing mesh, only 11.7 kg. Installation is carried out using the original mounting points and is easy to perform (for minor adjustments, see the installation instructions). Tested up to 6 bar and pressure stable. All our products are subject to constant quality monitoring.
OEM Intercooler:
Cooling surface 1024 cm² / Charge air volume 8.2 l
Inlet and outlet Ø68 mm
WT EVO 3 Competition:
Cooling surface 1890 cm² / Charge air volume 16.5 l
Inlet and outlet Ø68 mm
Scope of delivery:
1 intercooler with crossmember
1 mounting hardware
