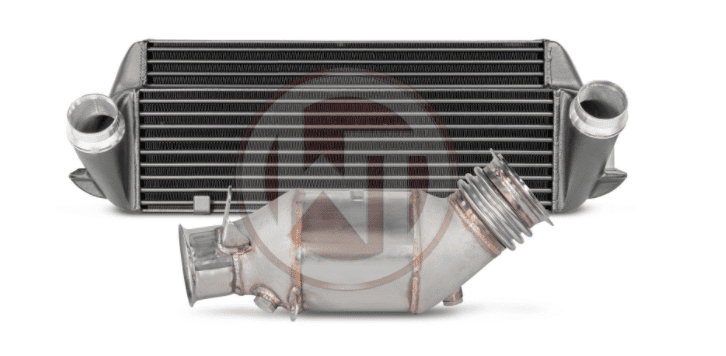

Wagner Tuning Competition Kit for BMW F-Series, consisting of an intercooler upgrade kit + N55 downpipe kit with a 200 CPI racing catalytic converter.
Fits the following vehicles:
BMW M135i F20 / F21 up to 06/2013
BMW 335i (x) F30 / F31 / F34 up to 06/2013
BMW 435i (x) F32 / F36 up to 06/2013
INTERCOOLER KIT
The high-performance intercooler has the following mesh dimensions: 520x215x145 / 13,840 cm³ stepped – OEM 510x130x110 mm, 7,293 cm³. It offers an 85% larger flow surface and a 90% larger charge air volume than the original intercooler. The high-performance mesh offers excellent cooling properties and is also very lightweight. The intercooler end boxes are made of cast aluminum and have been optimized using CAD flow analyses. The EVO 2 intercooler kit was developed specifically for the BMW 335i. Installation replaces the OEM intercooler and is easy to perform. The original charge air pipes can still be used. Optimal cooling of the charged air with a significant increase in performance! The racing version weighs 8.6 kg.
Scope of delivery:
– 1 intercooler
– 1 assembly material
– 1 assembly instruction
DOWNPIPE KIT
The downpipe kit has the following features:
76 mm diameter
Completely made of high-quality 1.4301 (SS304) stainless steel
CAD-designed
2 lambda probe connections
Racing main catalytic converter (200 cells/inch)
100% exact fit, simply replace with a standard part
Less thermal load on the turbocharger, more power thanks to pressure reduction
Connection diameter 105 mm
Significantly more torque
Not permitted in road traffic regulations.
Errors may appear in the DME.
