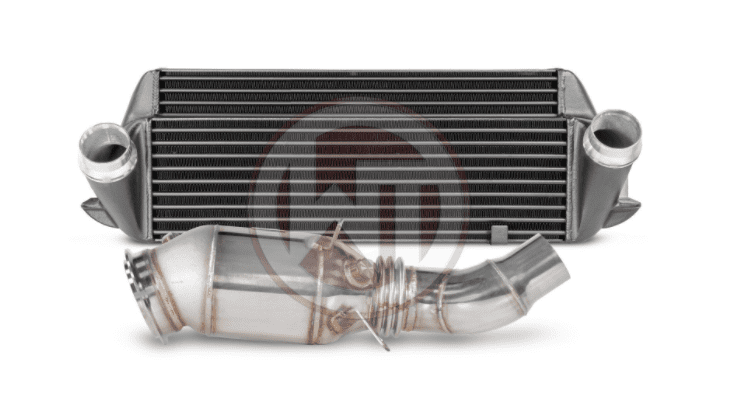

Wagner Tuning Competition Kit for BMW F-Series, consisting of an intercooler upgrade kit and an N20 downpipe kit without a catalytic converter.
Fits the following vehicles:
BMW 125i F20 / F21
BMW 220i F22 / F23
BMW 228i (x) F22 / F23
BMW 320i (x) F30 / F31 / F34
BMW 328i (x) F30 / F31 / F34
BMW 420i (x) F32 / F36
BMW 428i (x) F32 / F36
INTERCOOLER KIT
The high-performance intercooler has the following mesh dimensions: 520x215x145 / 13,840 cm³ stepped – OEM 510x130x110 mm, 7,293 cm³. It offers an 85% larger flow surface and a 90% larger charge air volume than the original intercooler. The high-performance mesh offers excellent cooling properties and is also very lightweight. The intercooler end boxes are made of cast aluminum and have been optimized using CAD flow analyses. The EVO 2 intercooler kit was developed specifically for the BMW 335i. Installation replaces the OEM intercooler and is easy to perform. The original charge air pipes can still be used. Optimal cooling of the charged air with a significant increase in performance! The racing version weighs 8.6 kg.
Scope of delivery:
– 1 intercooler
– 1 assembly material
– 1 assembly instruction
DOWNPIPE KIT
The downpipe kitfor the BMW N20 engine has the following features:
76 mm diameter
Completely made of high-quality 1.4301 (SS304) stainless steel
2 lambda probe connections
CAD-designed without catalytic converter
100% perfect fit, simply replace with a standard part
Less thermal load on the turbocharger, more power thanks to pressure reduction
Dynamics of the 105 mm connection diameter
Much more torque
