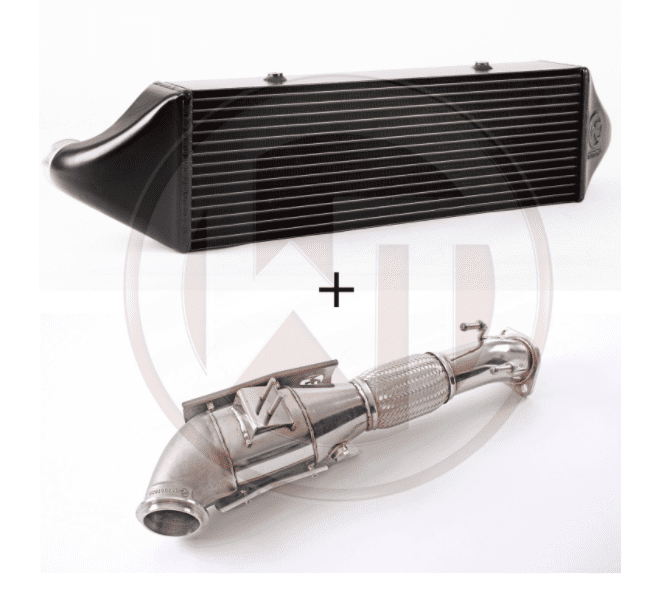

Wagner Tuning Competition Kit for the Ford Focus MK3 ST250, consisting of an intercooler upgrade kit and a downpipe kit.
INTERCOOLER KIT
The high-performance competition intercooler has the following net dimensions: 640 mm x 200 mm x 110 mm = 14,080 cm³. It offers a 24% larger flow surface area and a 60% larger charge air volume than the original intercooler. The high-performance net provides excellent cooling properties. The intercooler weighs 10.5 kg. Free-form, cast aluminum end boxes are CAD-designed for the best possible internal airflow. Overall, this intercooler has much lower backpressure than the standard intercooler. It also features an anti-corrosion coating with thermal conductivity properties, ensuring optimal cooling with a significant increase in performance. This kit is completely ready to install; simply replace it with a standard intercooler – plug and play. Tested up to 6 bar and pressure-stable. The connection diameter is 65 mm on both sides.
The racing intercooler kit fits the following vehicles:
Ford Focus MK3 ST250 2.0L 184KW / 250PS (2012+)
Scope of delivery:
– 1 intercooler
– 1 assembly material
– 1 assembly instructions
DOWNPIPE KIT
High-quality cast stainless steel 1.4301 (SS304)
Diameter before and after the catalytic converter: Ø76mm
CAD-designed and flow-optimized
2 lambda probe connections
Racing metal catalytic converter (200 CPSI EU6 coating)
100% perfect fit
Less thermal load on the turbocharger, more power thanks to the reduction in dynamic pressure
Significantly more torque
Weight: 5.7kg
