Discover a new dimension of performance with the Wagner Tuning EVO3 competition intercooler kit for the BMW M135i and M235i!
Maximize the performance of your BMW M135i or M235i with the revolutionary Wagner Tuning EVO3 high-performance intercooler kit. Designed for the most demanding tuning levels, this intercooler delivers groundbreaking performance. The 510 mm x 345 mm x 180 mm mesh (23.56 L stepped) provides an impressive 165% larger inflow area and an incredible 223% more charge air volume than a standard intercooler.
First-class technology for maximum performance! The competition-grade mesh is based on premium tubular fin technology with internal turbulators. Despite its considerable size, the intercooler is lightweight, weighing only 13.8 kg. The radiator’s die-cast aluminum end boxes have been optimized using CFD flow analysis to ensure exceptional cooling properties with minimal backpressure.
Components for extreme performance! The EVO3 kit was developed specifically for the requirements of the top tuning levels of the BMW M135i and M235i. The original snap-on connections have been eliminated, and the inlet connection diameters have been increased to Ø65 mm and the outlet to Ø76 mm. The kit includes two reinforced silicone hoses and a Ø76 mm aluminum charge air hose. The result: optimal cooling of the charged air and a significant increase in performance!
High-quality design for longevity! Our intercoolers have an anti-corrosion coating that also has excellent heat conduction properties. This ensures a long-lasting and optimal cooling effect with a significant increase in performance. The kit is completely ready to install and includes a modified crossmember. It can be easily replaced with stock parts, although minor modifications to the radiator mount are required due to its extreme dimensions.
No more compromises: pure performance! The Wagner Tuning EVO3 Competition intercooler kit has been tested up to 6 bar and is absolutely pressure stable. Our products are subject to continuous quality monitoring to ensure the highest standards. The kit is ideal for racing and sets new performance standards.
Enhance your driving experience and feel the power of progress. Get the Wagner Tuning EVO3 Competition intercooler kit for your BMW M135i or M235i now!
Benefits of the Wagner Tuning intercooler:
– Improved cooling performance
– 165% larger flow area
– 223% more charge air volume
– Connection diameter enlarged to Ø65mm at the inlet and Ø76mm at the outlet
– Plug and play
Dimensions of the original intercooler:
510 mm x 130 mm x 110 mm
V = 7.3 liters
H = 663 cm²
Dimensions of the Wagner Tuning intercooler:
510 mm x 345 mm x 180 mm [stepped]
V = 23.56 liters
H = 1759.5 cm²
Item number 200001144

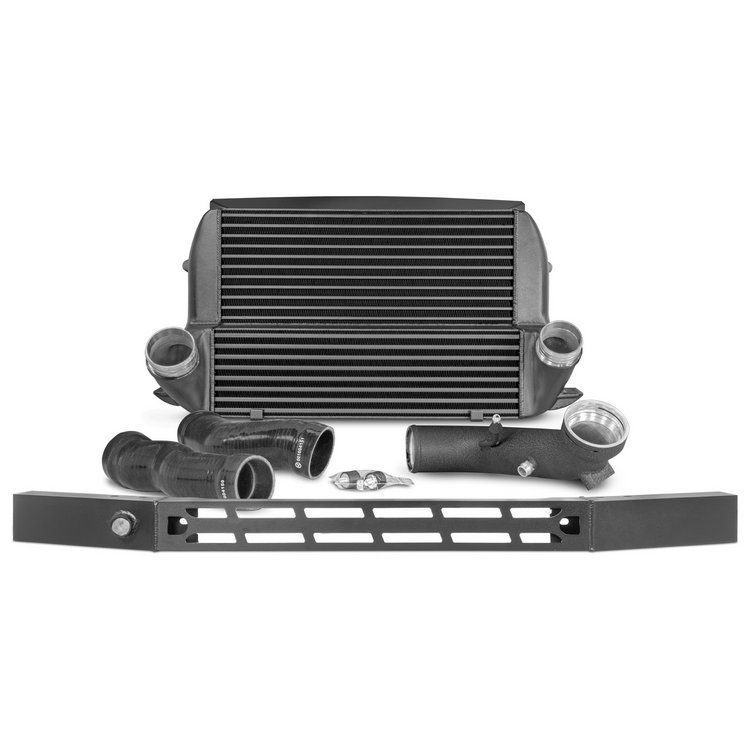

Scope of delivery:
1 intercooler
1 charge air pipe Ø76mm
1 external air duct
2 silicone hoses
1 aluminum adapter
1 cross member
1 assembly material
1 assembly instructions
