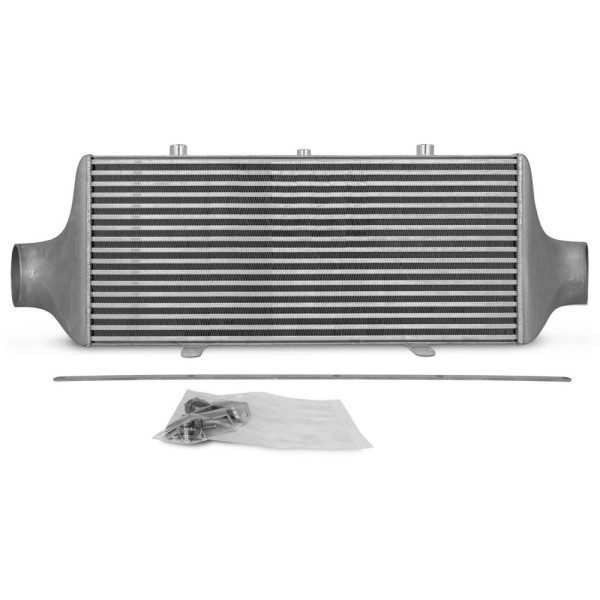

Wagner Tuning EVO2 Competition Intercooler Kit for Toyota Supra JZA80 MK4.
The WAGNERTUNING high-performance intercooler features a new competition mesh (tubular fin) measuring 700 mm x 300 mm x 155 mm. This corresponds to an external mesh volume of 32.5 liters. Therefore, the Wagner Tuning Competition intercooler for the Toyota Supra offers a 262% larger frontal flow surface and a 331% larger external mesh volume than the original intercooler.
The die-cast aluminum end boxes were designed using CAD and optimized using CFD simulations (for ideal internal airflow). The connections are angled backwards by 30°. The cast aluminum is designed for a connection diameter of Ø102 mm (4 inches) and can be adapted to the following connection sizes or shapes depending on customer requirements. Special shapes and sizes can be requested separately.
– Standard tube connection Ø76 mm (3 inches); Ø89 mm (3.5 inches); Ø102 mm (4 inches)
– Vibrating connection Ø76 mm (3 inches); Ø89 mm (3.5 inches); Ø102 mm (4 inches)
The result is excellent cooling properties with the lowest possible backpressure. This kit is perfect for racing: optimal cooling of the charged air with a significant increase in performance.
Important installation information:
– No plug-and-play installation
– Conversion from SMIC to FMIC (including mounting material for the intercooler) – No air conditioning condenser
– The expansion tank must be repositioned (available separately in the shop)
– The cooling circuit for the servo must be repositioned (separately in the shop)
– The charge air line must be adapted to the intercooler (not included in the kit)
OEM Intercooler:
270 mm x 215 mm x 130 mm
V = 7.54 L
A = 580.5 cm²
WAGNER TUNING Intercooler:
700 mm x 300 mm x 155 mm
V = 32.5 L + 331%
A = 2100 cm² + 262%
Scope of delivery:
– 1 intercooler (uncoated)
– 2 silicone adapters (depending on connection type)
– 1 mounting material
– 1 installation instruction
