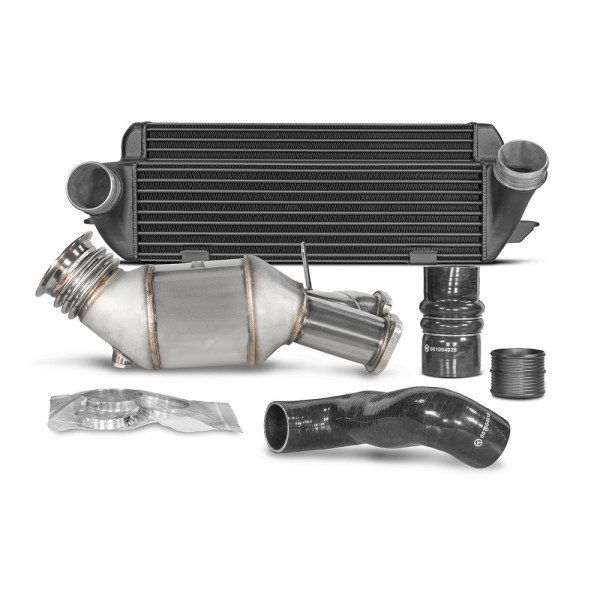

Wagner Tuning Kit for BMW 1 Series / 3 Series, consisting of the EVO 2 intercooler upgrade kit and the N55 downpipe kit without a catalytic converter.
Fits the following vehicles:
BMW 135i E82 / E88 *
BMW 335 (x) i E90 / E91 / E92 / E93 *
* (radiator mount rework required)

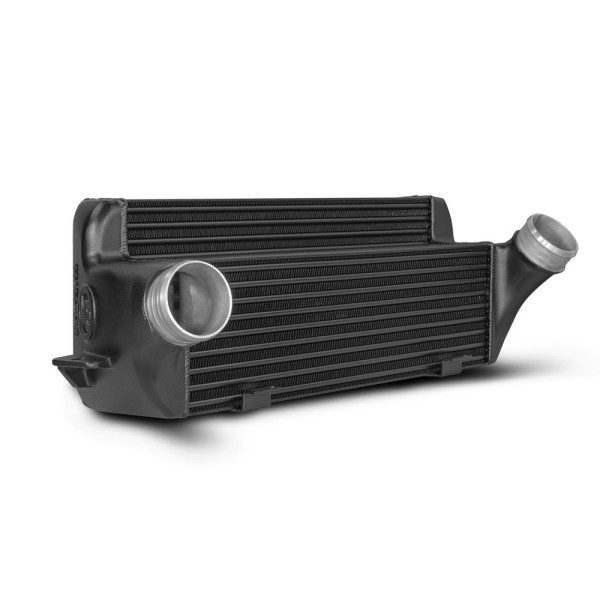

INTERCOOLER KIT
The intercooler has the following net dimensions: 520 mm x 210 mm x 150 mm / stepped = 13.572 cm³. It therefore offers 85% more flow surface area and 90% more charge air volume than the original intercooler. The high-performance mesh ensures that adjacent components, such as the water cooler, still have sufficient airflow and is also very lightweight (7.4 kg). Free-form, CAD-designed cast aluminum end caps ensure the best possible internal airflow. This intercooler has significantly lower back pressure than the stock cooler and features an anti-corrosion coating with thermal conductivity properties. This ensures optimal cooling with a significant increase in performance. Installation is simple and replaces the OEM intercooler.
To ensure our EVO 2 version fits all specified vehicles, minor adjustments are required.
The cooler fits vehicles with N54 and N55 engines. For vehicles with the M package, additional underbody adjustments are required.
The scope of delivery includes:
1 intercooler

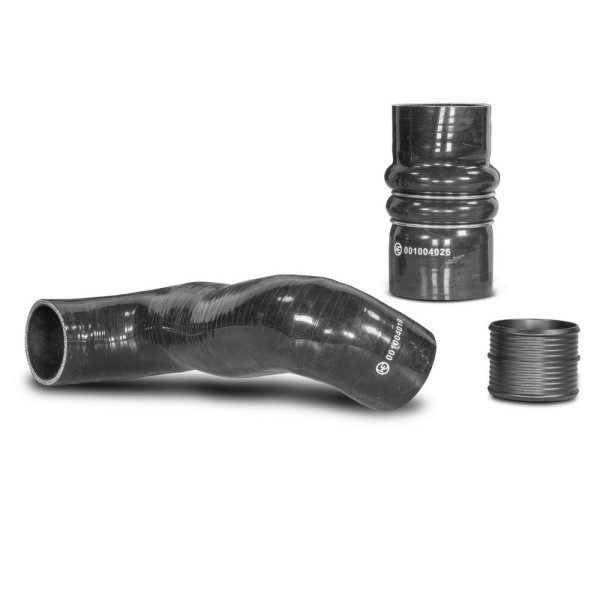

1 silicone hose inlet, reinforced version
1 silicone hose outlet
1 LLK intake pipe
Aluminum adapter
1 set of 12 mm stainless steel clamps
1 assembly material
1 assembly instructions

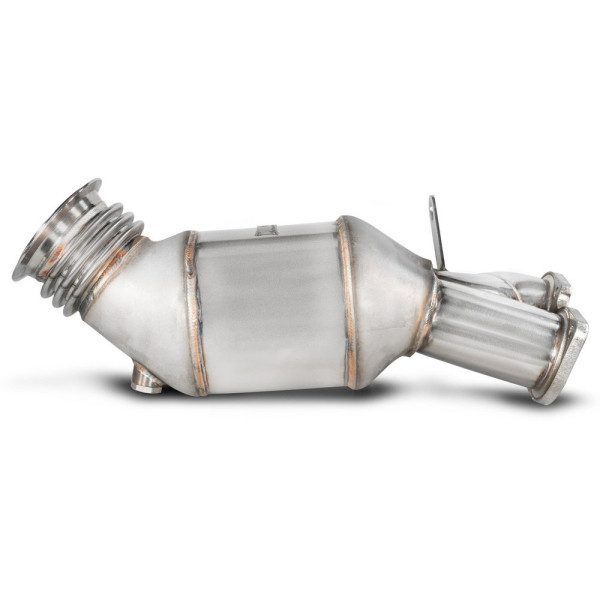

DOWNPIPE KIT
The Wagner Tuning downpipe kit for the BMW E8x E9x N55 engine without catalytic converter has the following features:
Diameter 76 mm (3)
Completely made of high-quality 1.4301 (SS304) stainless steel
2 CAD-designed lambda probe connections
100% perfect fit without a main catalytic converter, simply replace it with a standard part
Less thermal load on the turbocharger, more power thanks to reduced piston pressure
Significantly more torque
Not permitted in the area of the Road Traffic Regulations.
