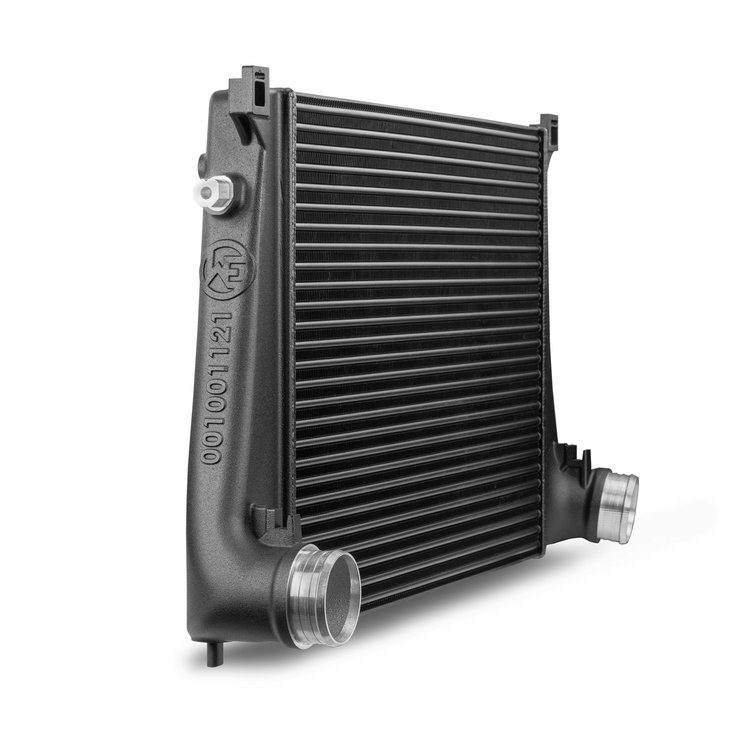

Wagner Tuning Competition Intercooler Kit for Cupra Formentor VZ5 2.5TFSI.
The Competition intercooler has the following net dimensions: 620 mm x 440 mm x 65 mm. It offers an external charge air volume of 17.7 liters (OEM 9 liters). The new Competition high-performance mesh (Tube Fine) ensures sufficient airflow to adjacent components, such as the water cooler, and is also very lightweight. The intercooler weighs just 9.2 kg in total. The cast aluminum end boxes were created in CAD and optimized using CFD simulations for the best possible internal airflow. An air duct integrated into the end box allows for homogeneous filling of the Competition high-performance mesh. The intercooler inlets and outlets have been enlarged to 70 mm in diameter, so this kit comes with reinforced silicone hoses.
Overall, this intercooler has much lower backpressure than the standard intercooler. It also features an anti-corrosion coating with heat-conducting properties, ensuring permanent, optimal cooling with a significant increase in performance.
Installation is performed by replacing the OEM intercooler and is easy to perform.

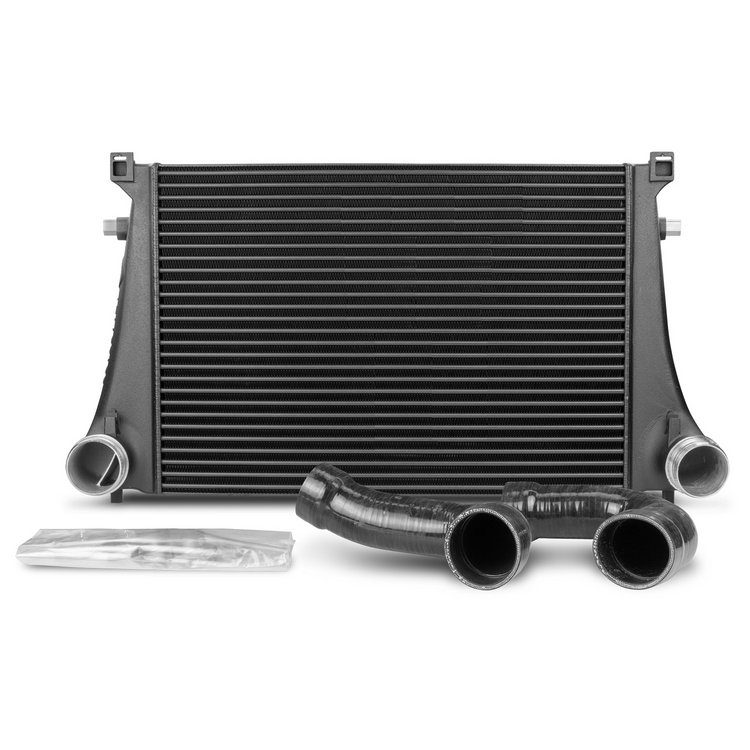

Scope of delivery:
1 intercooler
2 silicone hoses
4 hose clamps
1 mounting material
1 installation instruction
