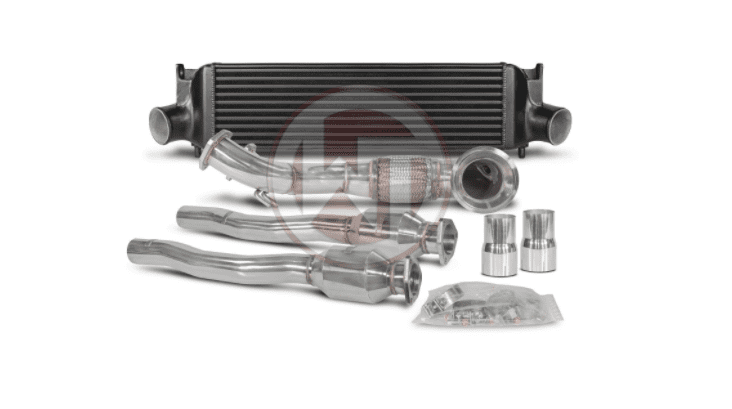

Wagner Tuning competition kit for the Audi RS3 8P, consisting of the EVO 3 intercooler upgrade kit and the downpipe kit.
INTERCOOLER KIT
The EVO3 intercooler kit for the Audi RS3 8P is a further development of the previous EVO 2 intercooler kit.
The high-performance intercooler has the following mesh dimensions (515 mm x 367 [274] mm x 95 mm) and therefore offers a 120% larger flow surface and a 142% larger charge air volume than the original intercooler. The newly developed high-performance competition mesh ensures sufficient airflow to adjacent components, such as the water cooler, and is also very light. The intercooler end boxes are cast aluminum and optimized using CAD flow analysis. Integrated air deflectors in the inlet ensure even airflow throughout the intercooler. This results in excellent cooling performance with the lowest possible back pressure. This makes this kit perfect for racing. The intercooler and original crossmember form a stable unit, and thanks to the new high-performance racing mesh, it weighs just 11.2 kg. Installation takes place at the original mounting points and is easy (1:1 ratio). Optimal charge air cooling with a significant increase in performance.
OEM intercooler: cooling area 856 cm² / charge air volume 6.8 L
WT EVO 1 PERFORMANCE: cooling area 856 cm² / charge air volume 9.4 L
WT EVO 2 COMPETITION: cooling area 1391 cm² / charge air volume 13.2 L
WT EVO 3 COMPETITION: cooling area 1890 cm² / charge air volume 16.5 L
All our products are subject to constant quality monitoring.
The scope of delivery includes:
1 intercooler
1 mounting material
1 set of license plate holders
1 installation instruction

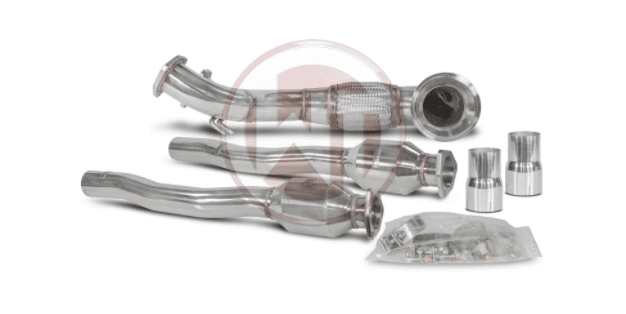

DOWNPIPE KIT
Catalytic converter diameter from 90 mm to 2 x 70 mm
Completely made of high-quality 1.4301 (SS304) stainless steel
No pre-cat
2 racing main catalytic converters (100 cells/inch)
100% perfect fit, simply replace with a standard part
Less thermal load on the turbocharger
More power thanks to reduced dynamic pressure
Significantly more torque
Suitable for Audi TTRS 8J and Audi RS3 8P
Compatible with original main catalytic converters
Not in the STVO-approved range
