TURBOSYSTEM – UNIVERSAL TURBOCHARGER HTX4271B1

SPECIFICATIONS

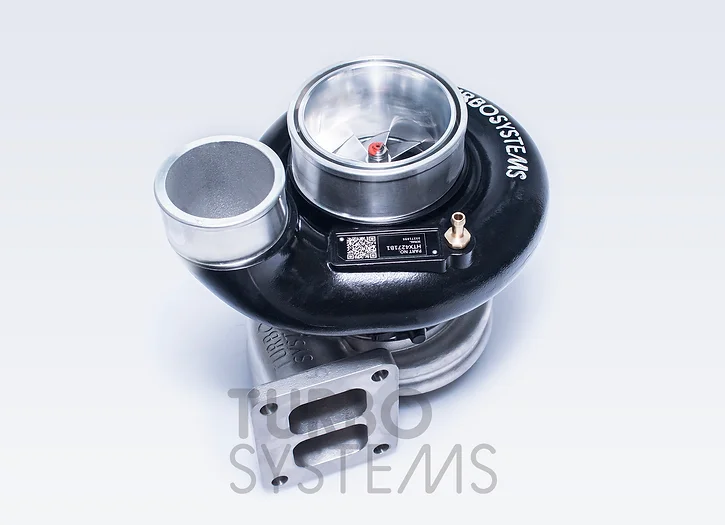

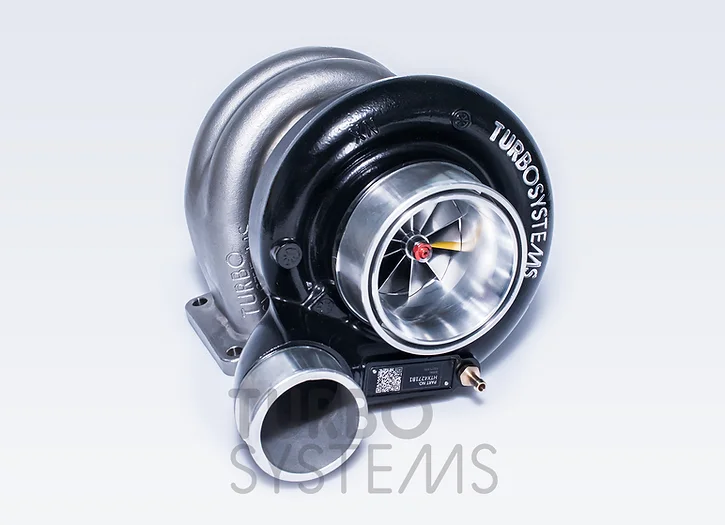

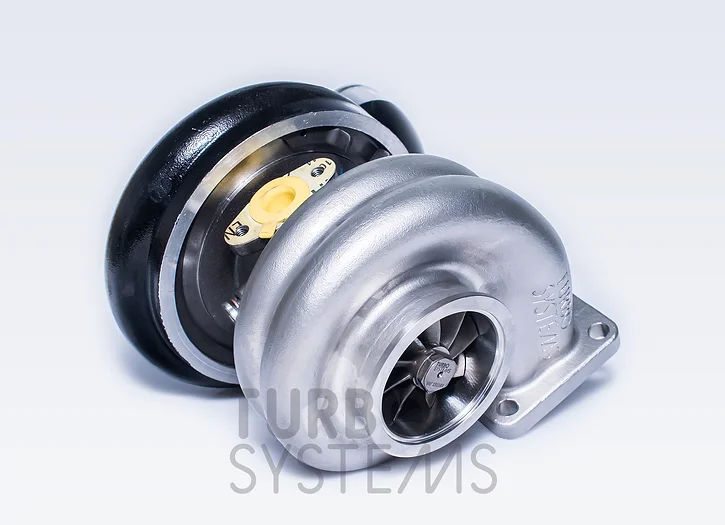

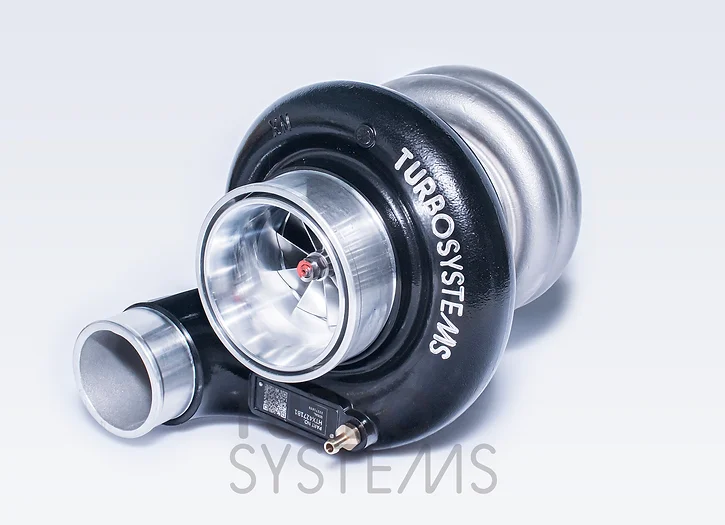

HIGH-PERFORMANCE TURBOCHARGER DESIGNED FOR HEAVY LOADS AND HIGH TEMPERATURES. TWO COMPRESSOR SIDE OUTLET OPTIONS: 90° (AS SHOWN IN THE IMAGES) AND STRAIGHT FOR EASIER CONNECTION. THE STAINLESS STEEL HOUSING AND BILLET ALUMINUM COMPRESSOR WHEEL MAKE IT A DURABLE AND EFFICIENT SOLUTION FOR MOTORSPORTS USE.POWER RANGE: 600-1000 HP;COMPRESSOR SIDE:COMPRESSOR IMPELLER: REINFORCED 71/88 MM 10+0 BLADES, MACHINED IN-HOUSE AND MACHINED FROM SOLID ALUMINUM;INTAKE: 101 MM (4″);AIR OUTLET: 63 MM (2.5″);CORE:BEARINGS: DOUBLE CERAMIC BALL BEARINGS;COOLING: 2-PORT WATER COOLING M14X1.5;LUBRICATION: AN4 OIL INLET WITH INTEGRATED OIL LIMITER;TURBINE SIDE:HOUSING: DOUBLE-SCROLL, 19 CM2 / AR: 1.02;TURBINE WHEEL: CUSTOM DESIGN 78.5/70 MM 9-BLADEFLANGE: DOUBLE-SPIRAL T4;EXHAUST CONNECTION: 3″ V-CLAMP;NOT SURE WHICH TURBOCHARGER TO CHOOSE? CHECK OUT OUR HTX TURBO SPECS PAGE FOR A QUICK COMPARISON.MORE INFORMATION ON OPTIONAL EXTRAS:OIL DRAIN FLANGE PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/HTX-TURBO-OIL-DRAIN-FLANGEHTX TURBO V-BAND CLAMP PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/3-INCH-STAINLESS-STEEL-V-BAND-CLAMPGASKET PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/GASKET-FOR-HTX-TURBOCHARGERS
