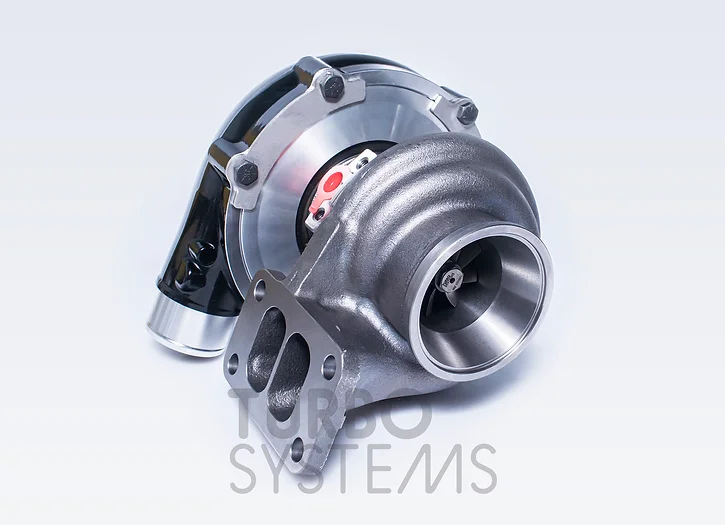

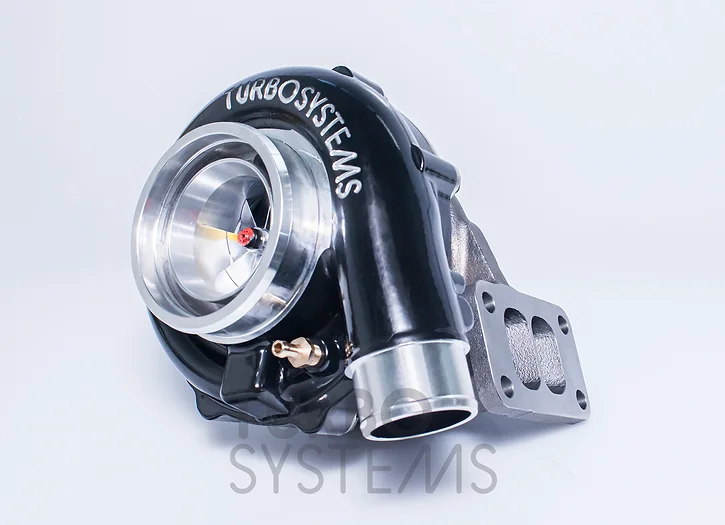

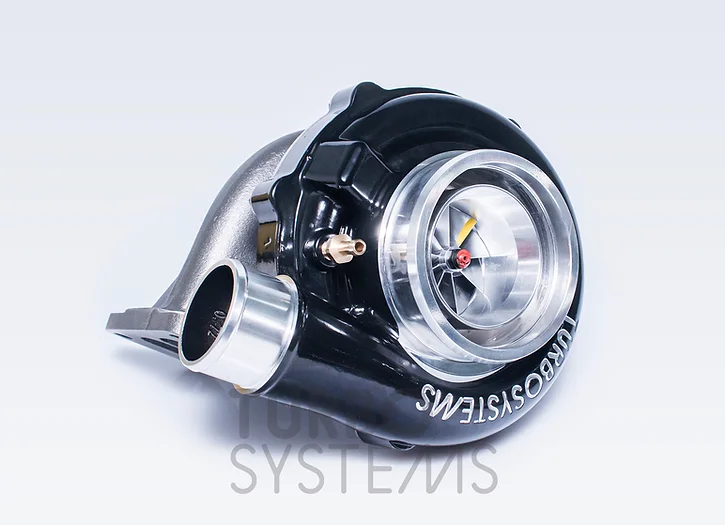

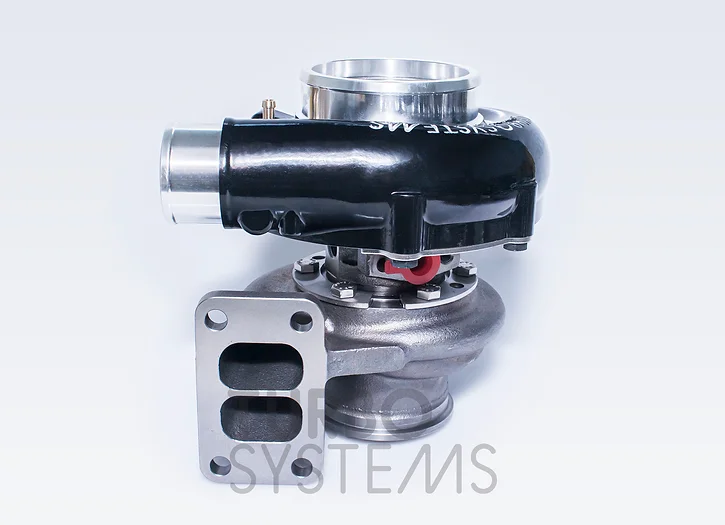

TURBOSYSTEM – UNIVERSAL TURBOCHARGER HTX3058B3

SPECIFICATIONS
HIGH-PERFORMANCE TURBOCHARGER WITH A 12 CM2, 0.89 AR T3 TWIN-SCROLL TURBINE HOUSING, DESIGNED FOR HEAVY LOADS AND HIGH TEMPERATURES. DUAL CERAMIC BALL BEARINGS AND A BILLET ALUMINUM COMPRESSOR WHEEL MAKE IT A DURABLE AND EFFICIENT SOLUTION FOR MOTORSPORTS USE.POWER RANGE: 450-650 HP;COMPRESSOR SIDE:COMPRESSOR HOUSING WITH GUARD AND DOORS;COMPRESSOR WHEEL: REINFORCED 58/72 MM 9+0 INTERNAL BLADES MACHINED FROM SOLID ALUMINUM;INTAKE: 101 MM (4″);AIR OUTLET: 51 MM (2″);CORE:BEARINGS: DOUBLE CERAMIC BALL BEARINGS;COOLING: WATER-COOLED WITH 2 PORTS M14X1.5;LUBRICATION: AN4 OIL INLET WITH INTEGRATED OIL LIMITER;TURBINE SIDE:CASE: DOUBLE SPIRAL, 12 CM2 AR: 0.89;TURBINE WHEEL: CUSTOM DESIGN 60/55MM 9-BLADE;FLANGE: DOUBLE SPIRAL T3;EXHAUST CONNECTION: 3″ V-CLAMP;NOT SURE WHICH TURBOCHARGER TO CHOOSE? CHECK OUT OUR HTX TURBO SPECS PAGE FOR A QUICK COMPARISON.MORE INFORMATION ON OPTIONAL EXTRAS:OIL DRAIN FLANGE PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/HTX-TURBO-OIL-DRAIN-FLANGEHTX TURBO V-BAND CLAMP PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/3-INCH-STAINLESS-STEEL-V-BAND-CLAMPGASKET PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/GASKET-FOR-HTX-TURBOCHARGERS
