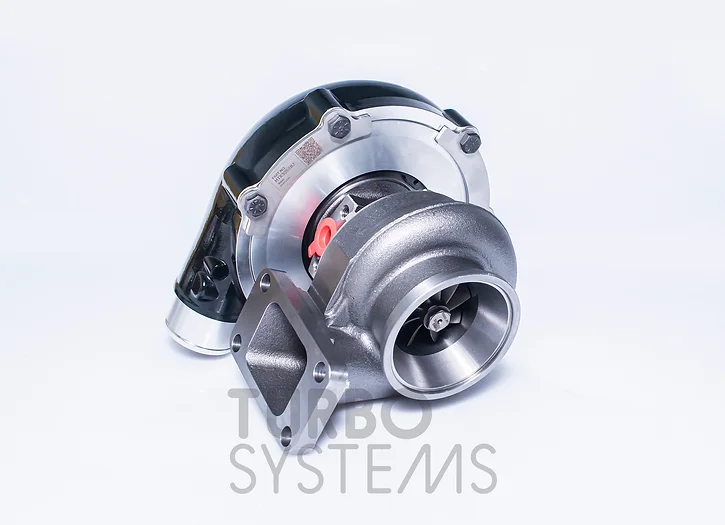

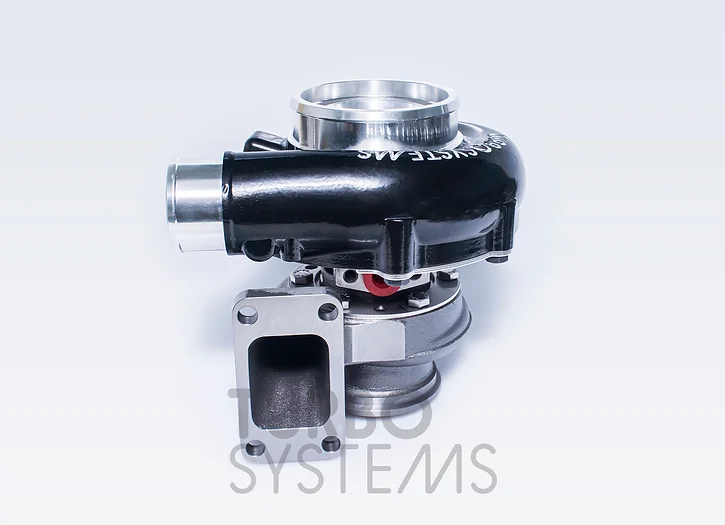

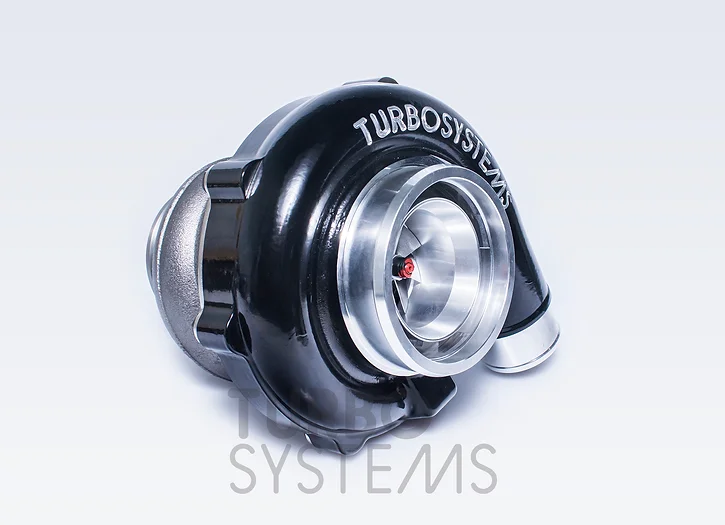

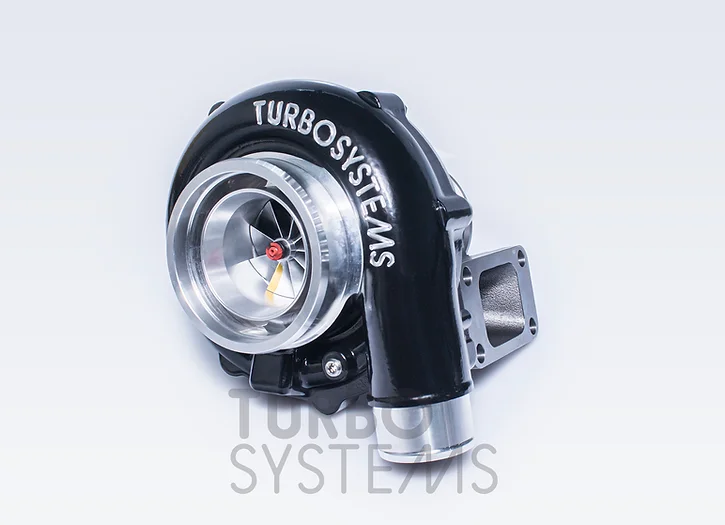

TURBOSYSTEM – UNIVERSAL TURBOCHARGER HTX3058B2

SPECIFICATIONS
HIGH-PERFORMANCE TURBOCHARGER WITH A T3 8 CM2, 0.61 AR SINGLE-SPIRAL TURBINE HOUSING, DESIGNED FOR HEAVY LOADS AND HIGH TEMPERATURES. DUAL CERAMIC BALL BEARINGS AND A BILLET ALUMINUM COMPRESSOR WHEEL MAKE IT A DURABLE AND EFFICIENT SOLUTION FOR MOTORSPORTS USE.POWER RANGE: 450-650 HP;COMPRESSOR SIDE:COMPRESSOR HOUSING WITH GUARD AND DOORS;COMPRESSOR IMPELLER: REINFORCED 58/72 MM 9+0 INTERNAL BLADES MACHINED FROM SOLID ALUMINUM;INTAKE:: 101 MM (4″);AIR OUTLET:: 51 MM (2″);CORE:BEARINGS: DOUBLE CERAMIC BALL BEARINGS;COOLING: 2-PORT WATER COOLING M14X1.5;LUBRICATION: AN4 OIL INLET WITH INTEGRATED OIL RESTRICTOR;TURBINE SIDE:CASE: SINGLE SLIDE, 8 CM2 AR: 0.61;TURBINE WHEEL: CUSTOM DESIGN 60/55MM 9-BLADE;FLANGE: SINGLE 3″ T3 SPIRAL;EXHAUST CONNECTION: 3″ V-CLAMP;NOT SURE WHICH TURBOCHARGER TO CHOOSE? CHECK OUT OUR HTX TURBO SPECS PAGE FOR A QUICK COMPARISON.MORE INFORMATION ON OPTIONAL EXTRAS:OIL DRAIN FLANGE PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/HTX-TURBO-OIL-DRAIN-FLANGEHTX TURBO V-BAND CLAMP PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/3-INCH-STAINLESS-STEEL-V-BAND-CLAMPGASKET PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/GASKET-FOR-HTX-TURBOCHARGERS
