TURBOSYSTEM – UNIVERSAL TURBOCHARGER HTX3057B2

SPECIFICATIONS

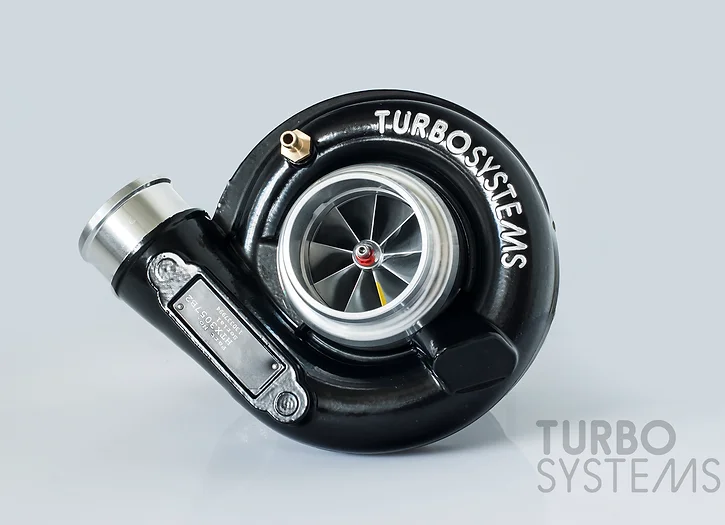

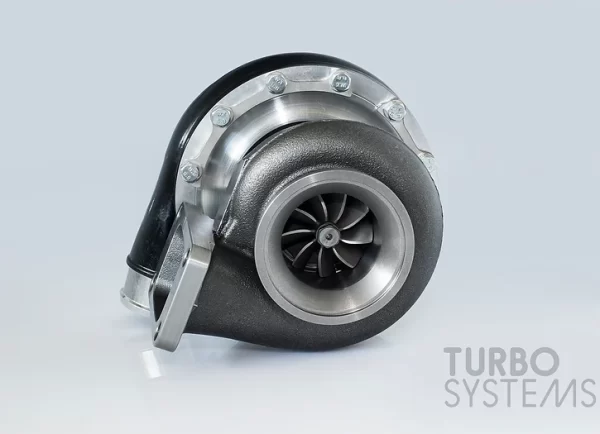

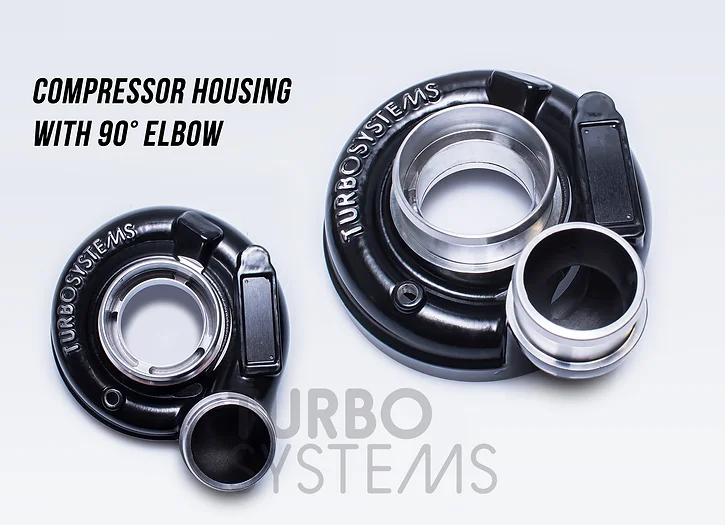

HIGH-PERFORMANCE TURBOCHARGER DESIGNED FOR HEAVY LOADS AND HIGH TEMPERATURES. TWO COMPRESSOR SIDE OUTLET OPTIONS: 90° AND STRAIGHT FOR EASIER CONNECTION. THE DUAL CERAMIC BALL BEARINGS AND BILLET ALUMINUM COMPRESSOR WHEEL MAKE IT A DURABLE AND EFFICIENT SOLUTION FOR MOTORSPORTS USE.POWER RANGE: 400-500+ HP;COMPRESSOR SIDE:COMPRESSOR HOUSING WITH GUARD AND DOORS;COMPRESSOR IMPELLER: 57/71 MM 9+0 REINFORCED INTERNAL BLADES MACHINED FROM SOLID ALUMINUM;INTAKE:STRAIGHT COMPRESSOR HOUSING – 63 MM;(2.5″) 90° ELBOW COMPRESSOR HOUSING – 76 MM (3″);AIR OUTLET: 51 MM (2″);CORE:BEARINGS: DOUBLE CERAMIC BALL BEARINGS;COOLING: WATER COOLING WITH 2 M14X1.5 PORTS;LUBRICATION: AN4 OIL INLET WITH INTEGRATED OIL RESTRICTOR;TURBINE SIDE:CASE: SINGLE SLIDE, 8 CM2 AR: 0.61;TURBINE WHEEL: CUSTOM DESIGN 60/55MM 9 BLADESFLANGE: T3 SINGLE SPIRAL;EXHAUST CONNECTION: 3″ V-CLAMP;YOU DON’T KNOW WHICH TURBOCHARGER SHOULD YOU CHOOSE? CHECK OUT OUR HTX TURBO SPECS PAGE FOR A QUICK COMPARISON.MORE INFORMATION ON OPTIONAL EXTRAS:OIL DRAIN FLANGE PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/HTX-TURBO-OIL-DRAIN-FLANGEHTX TURBO V-BAND CLAMP PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/3-INCH-STAINLESS-STEEL-V-BAND-CLAMPGASKET PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/GASKET-FOR-HTX-TURBOCHARGERS
