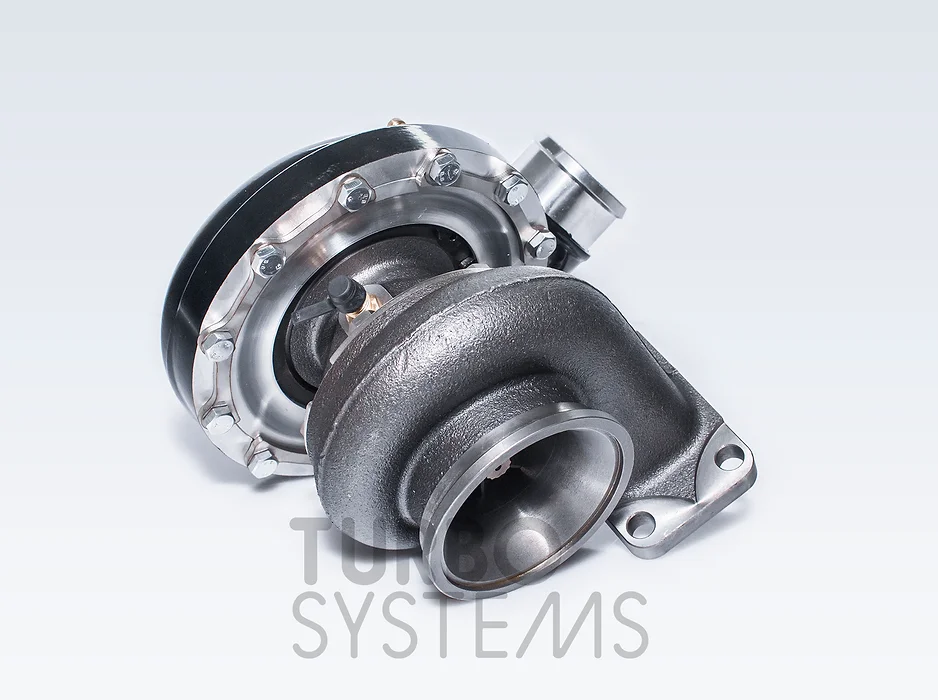

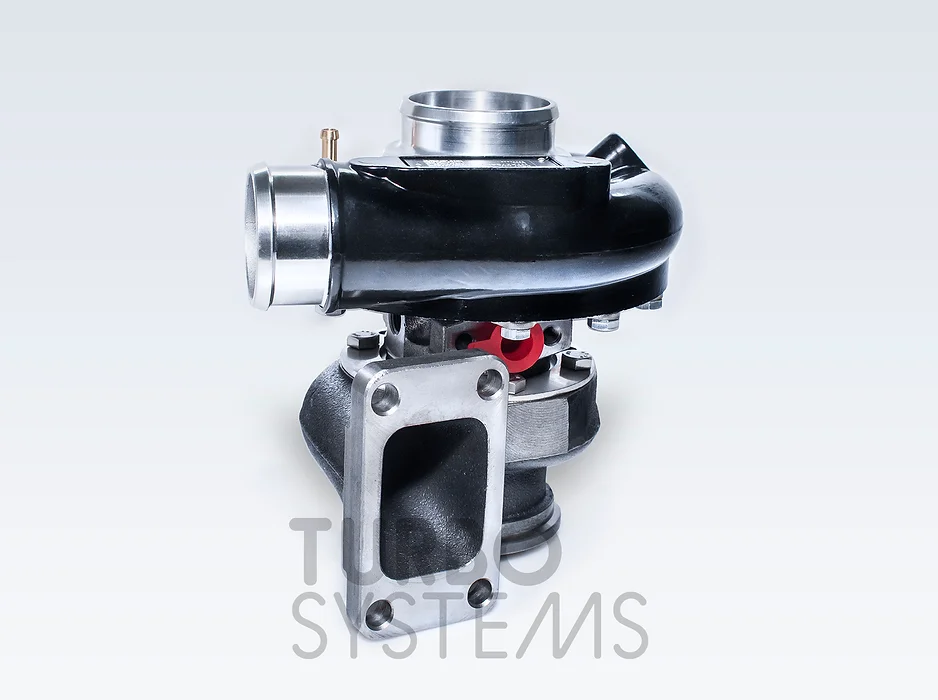

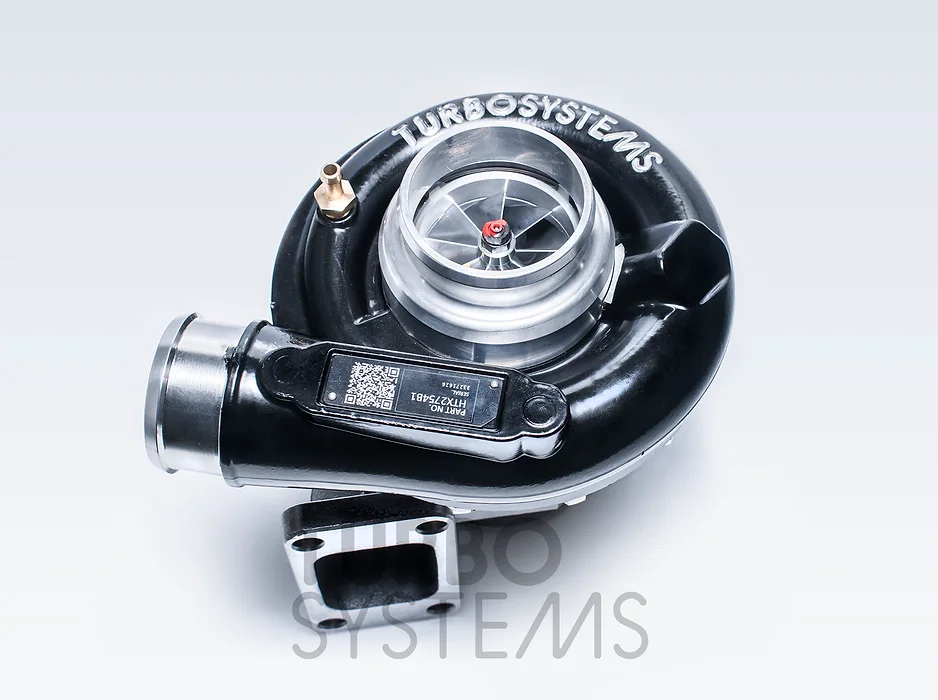

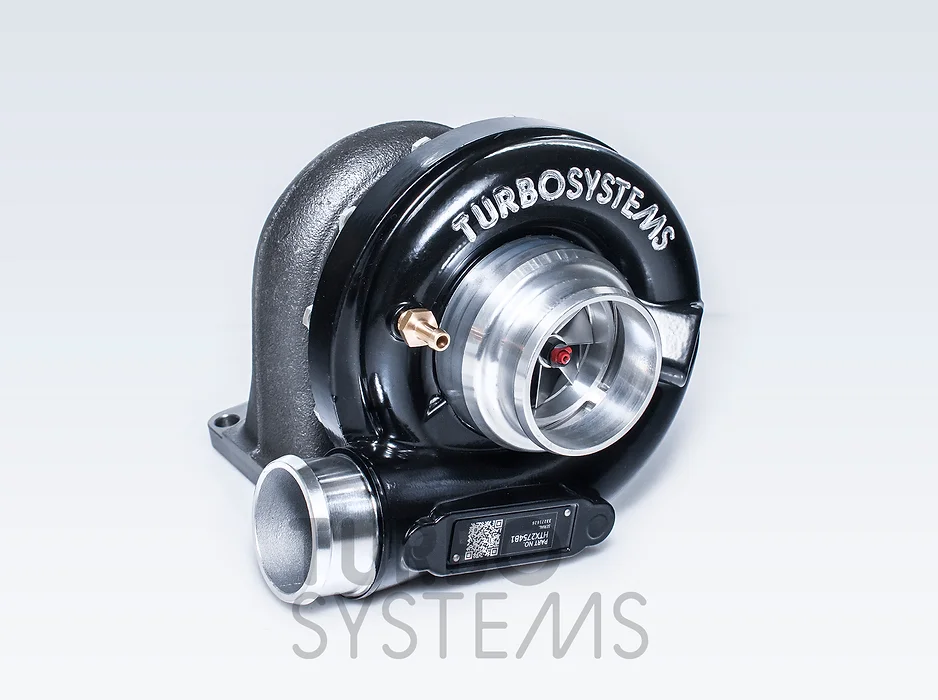

TURBOSYSTEM – UNIVERSAL TURBOCHARGER HTX2754B1

SPECIFICATIONS
COMPRESSOR SIDE:COMPRESSOR HOUSING WITH GUARD AND DOORS;COMPRESSOR IMPELLER: 54/67 MM 9+0 REINFORCED INTERNAL BLADES MACHINED FROM SOLID ALUMINUM;AIR INTAKE DIAMETER:STRAIGHT COMPRESSOR HOUSING – 63 MM (2.5″);COMPRESSOR HOUSING WITH 90° ELBOW – 76 MM (3″);AIR OUTLET DIAMETER:: 51 MM (2″);CORE:BEARINGS: DOUBLE BALL BEARINGS IN CERAMIC;COOLING: WATER-COOLED BEARING HOUSING WITH 2 M14X1.5 PORTS;LUBRICATION: AN4 OIL INLET WITH INTEGRATED OIL RESTRICTOR;TURBINE SIDE:HOUSING: SINGLE-SLIP 8 CM2 / AR: 0.61;TURBINE WHEEL: CUSTOM DESIGN 56/53MM 9-BLADE;FLANGE: T3 SINGLE SPIRAL;EXHAUST CONNECTION: 3″ V-CLAMP;NOT SURE WHICH TURBOCHARGER TO CHOOSE? CHECK OUT OUR HTX TURBO SPECS PAGE FOR A QUICK COMPARISON.LEARN MORE ABOUT OPTIONAL EXTRAS:OIL DRAIN FLANGE PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/HTX-TURBO-OIL-DRAIN-FLANGEHTX TURBO V-BAND CLAMP PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/3-INCH-STAINLESS-STEEL-V-BAND-CLAMPGASKET PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/GASKET-FOR-HTX-TURBOCHARGERS
