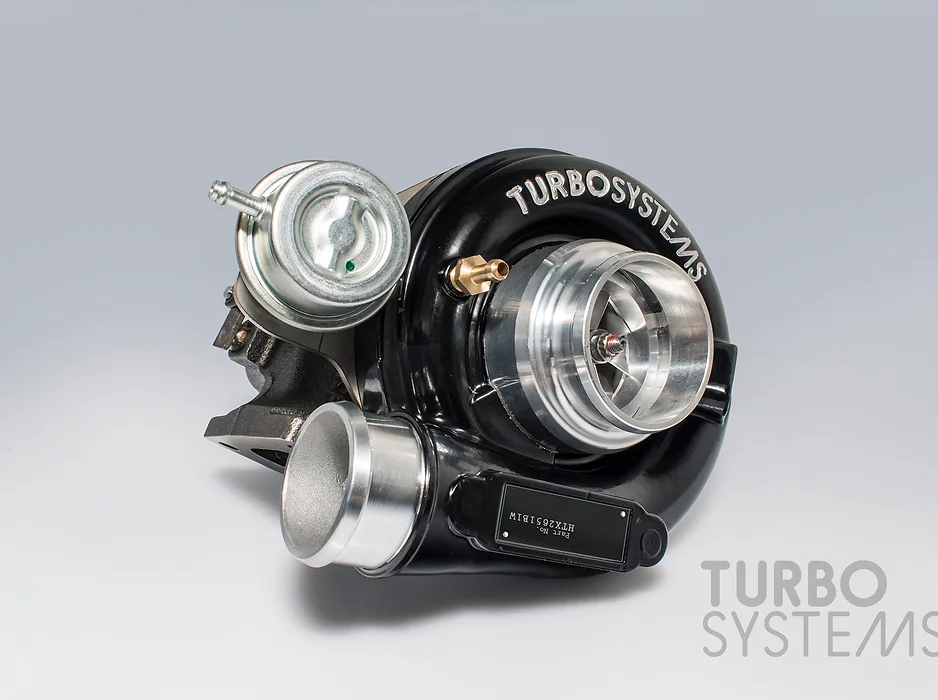

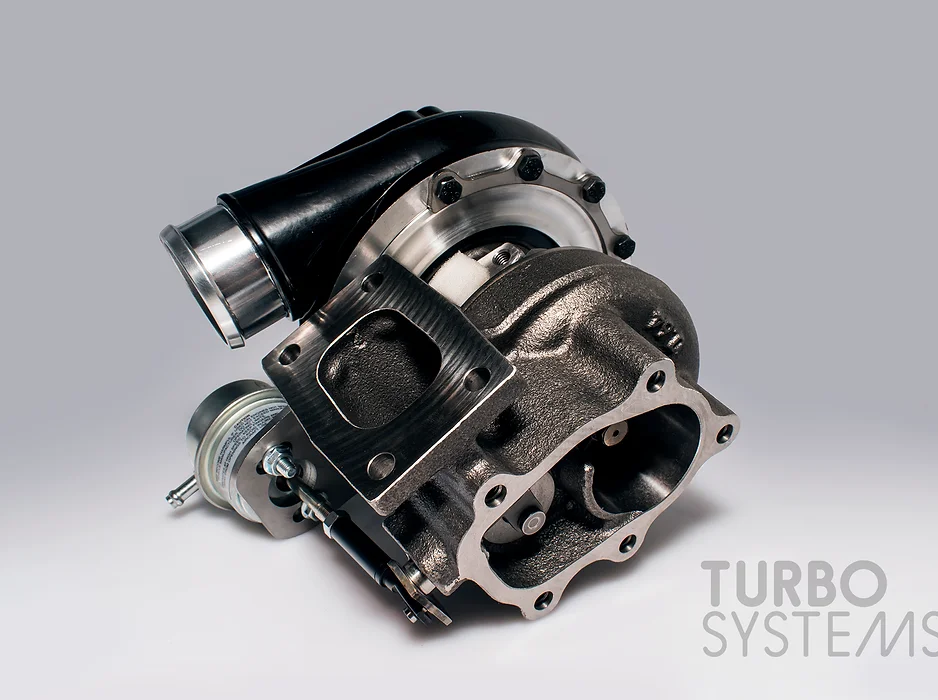

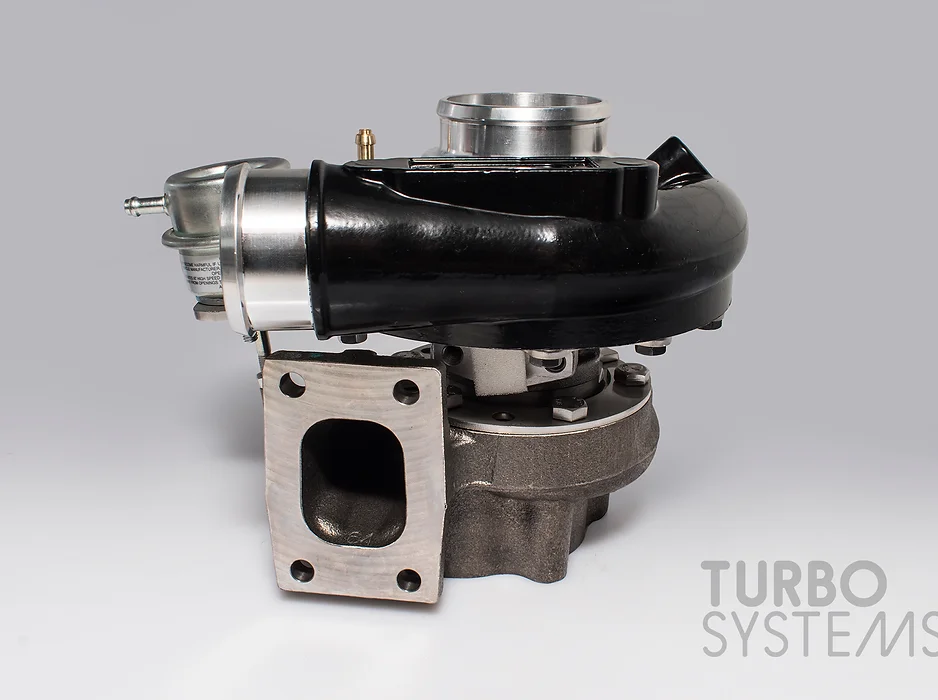

TURBOSYSTEM – UNIVERSAL TURBOCHARGER HTX2651B1W

SPECIFICATIONS

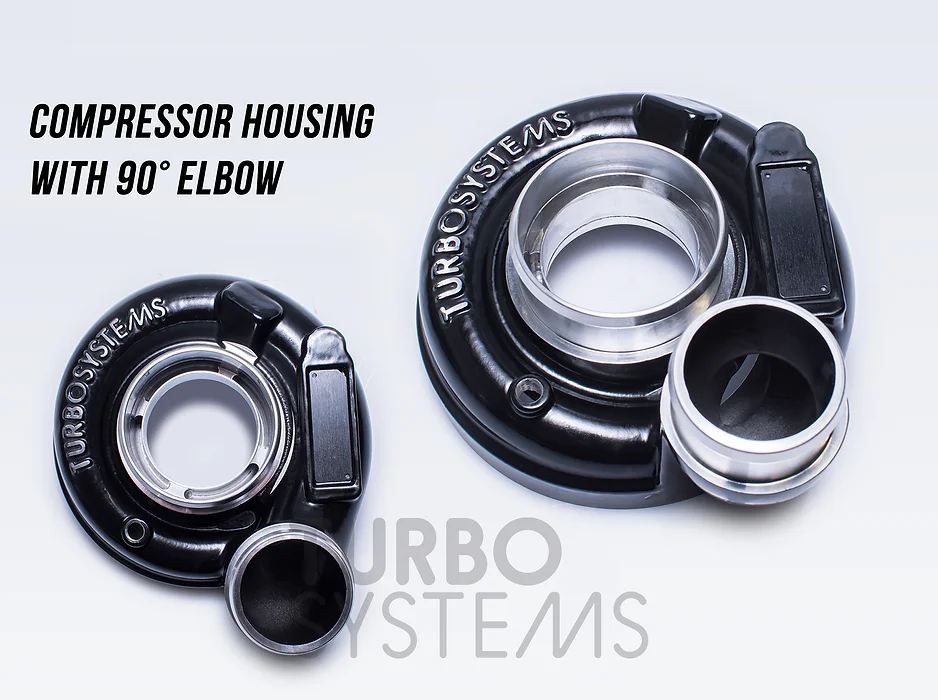

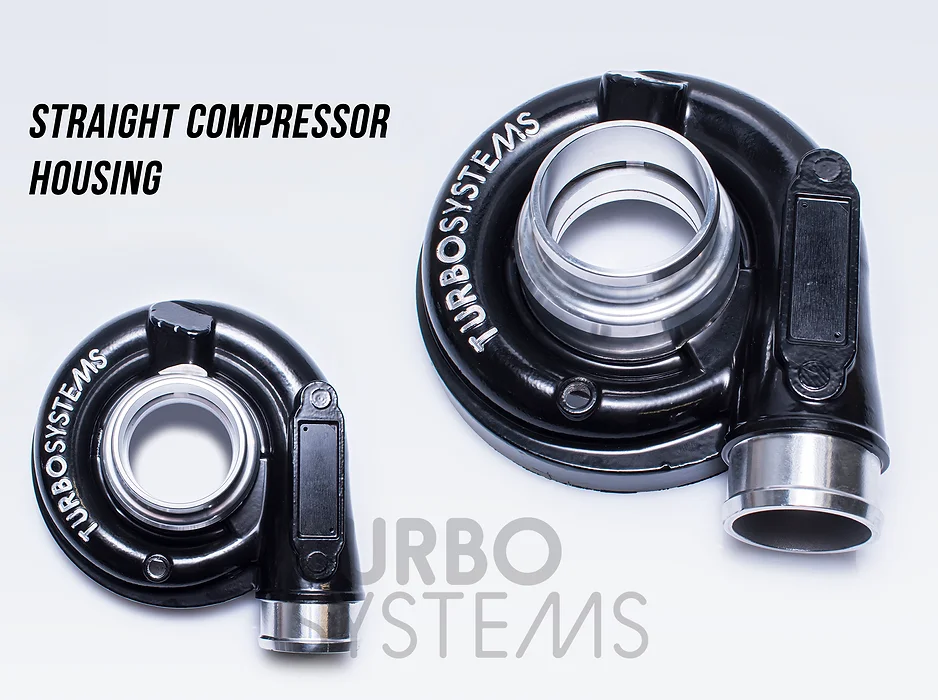

HIGH-PERFORMANCE TURBOCHARGER WITH A T25/T2 8 CM2, 0.61 AR SINGLE-SPIRAL TURBINE HOUSING, DESIGNED FOR HEAVY LOADS AND HIGH TEMPERATURES. TWO COMPRESSOR SIDE OUTLET OPTIONS: 90° AND STRAIGHT FOR EASIER CONNECTION. DUAL CERAMIC BALL BEARINGS AND A BILLET ALUMINUM COMPRESSOR WHEEL MAKE IT A DURABLE AND EFFICIENT SOLUTION FOR MOTORSPORTS USE.POWER RANGE: 350-450 HP;COMPRESSOR SIDE:COMPRESSOR HOUSING WITH GUARD AND DOORS;COMPRESSOR IMPELLER: REINFORCED 51/63 MM 9+0 BILLET INNER BLADES;INTAKE:STRAIGHT COMPRESSOR HOUSING – 63 MM (2.5″);COMPRESSOR BODY WITH 90° ELBOW – 76 MM (3″);AIR OUTLET: 51 MM (2″);CORE:BEARINGS: DOUBLE CERAMIC BALL BEARINGS;COOLING: WATER-COOLED WITH 2 M14X1.5 PORTS;LUBRICATION: AN4 OIL INLET WITH INTEGRATED OIL RESTRICTOR;TURBINE SIDE:CASE: SINGLE-SCROLL, 8 CM2 AR: 0.61;TURBINE WHEEL: CUSTOM DESIGN 55/49MM 10-BLADE;FLANGE: T25/T2 SINGLE SPIRAL;EXHAUST CONNECTION: “GARRETT”-STYLE EXHAUST FLANGE;NOT SURE WHICH TURBOCHARGER TO CHOOSE? CHECK OUT OUR HTX TURBO SPECS PAGE FOR A QUICK GUIDE. COMPARE.MORE INFORMATION ON OPTIONAL EXTRAS:OIL DRAIN FLANGE PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/HTX-TURBO-OIL-DRAIN-FLANGE
