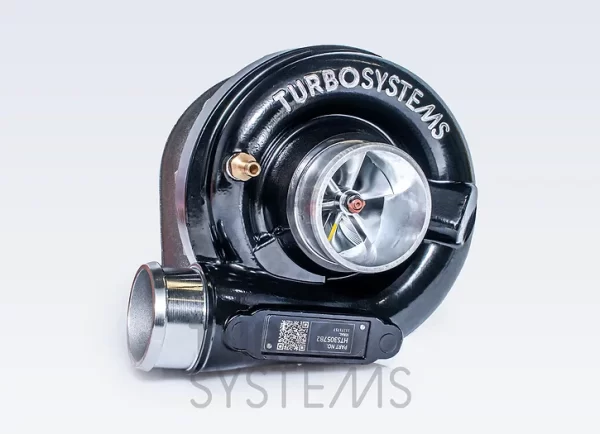

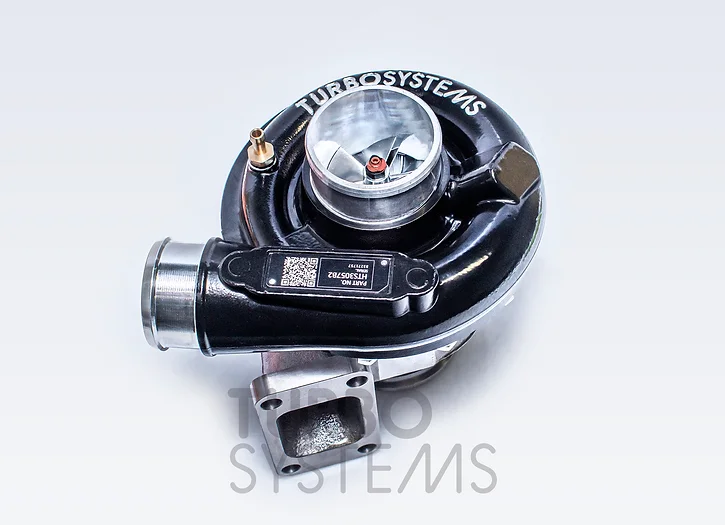

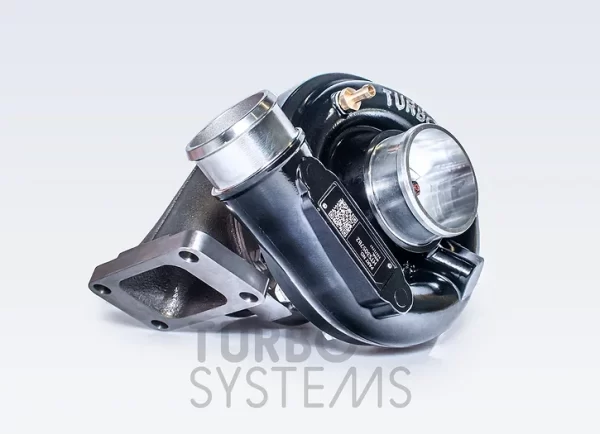

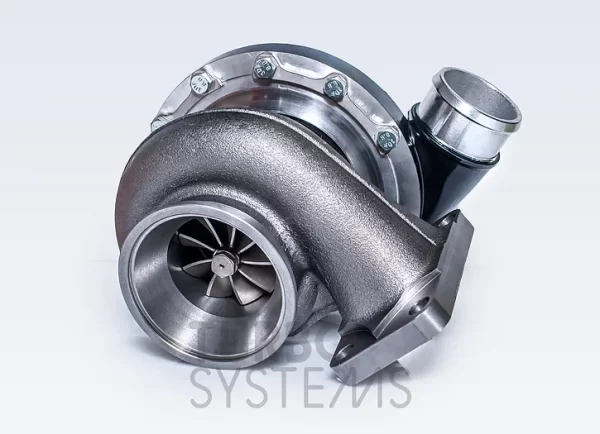

TURBOSYSTEM – UNIVERSAL TURBOCHARGER HTS3057B2

SPECIFICATIONS
HTS VERSION DESIGNED FOR LOWER BOOST AND FASTER SPOOL. RECOMMENDED BOOST UP TO 1.5 – 1.7 BAR. HIGH-PERFORMANCE TURBOCHARGER DESIGNED FOR HEAVY LOADS AND HIGH TEMPERATURES. THE DUAL CERAMIC BALL BEARINGS AND BILLET ALUMINUM COMPRESSOR WHEEL MAKE IT A DURABLE AND EFFICIENT SOLUTION FOR MOTORSPORTS USE.POWER RANGE: 300-450 HP;COMPRESSOR SIDE:COMPRESSOR IMPELLER: OUR OWN PRODUCTION, REINFORCED 57/71 MM 6+6 BLADES MACHINED FROM SOLID ALUMINUM;INTAKE: 63 MM (2.5″);AIR OUTLET: 51 MM (2″);CORE:BEARINGS: DOUBLE CERAMIC BALL BEARINGS;COOLING: WATER COOLING WITH 2 M14X1.5 PORTS;LUBRICATION: AN4 OIL INLET WITH INTEGRATED OIL RESTRICTOR;TURBINE SIDE:CASE: SINGLE-SLIP, 8 CM2 AR: 0.61;TURBINE WHEEL: CUSTOM DESIGN 60/55MM 9-BLADE;FLANGE: T3 SINGLE-SPIRAL;EXHAUST CONNECTION: 3″ V-CLAMP;NOT SURE WHICH TURBOCHARGER TO CHOOSE? CHECK OUT OUR HTX TURBO SPECS PAGE FOR A QUICK COMPARISON.MORE INFORMATION ON OPTIONAL EXTRAS:OIL DRAIN FLANGE PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/HTX-TURBO-OIL-DRAIN-FLANGEHTX TURBO V-BAND CLAMP PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/3-INCH-STAINLESS-STEEL-V-BAND-CLAMPGASKET PAGE: HTTPS://WWW.TURBOSYSTEMS.INFO/PRODUCT-PAGE/GASKET-FOR-HTX-TURBOCHARGERS
