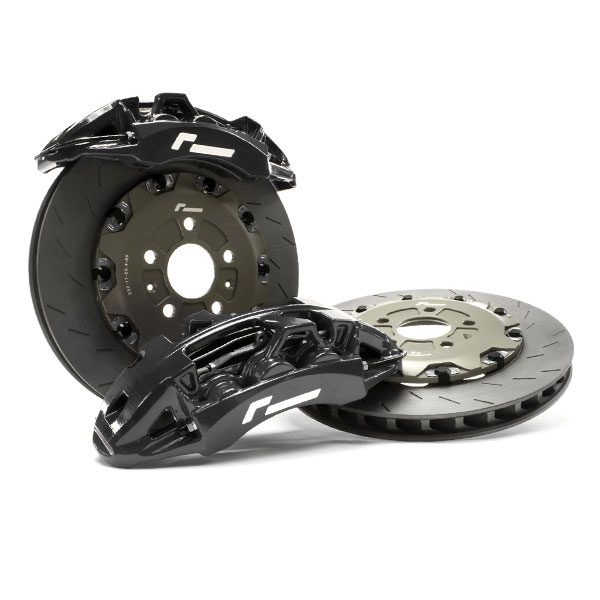

This Racingline “Stage 3″ large brake kit for the A5 chassis is available in four colors and two rotor sizes for 18″/19″ wheels.
Featuring a monoblock caliper forged using the latest FEA technology, this kit delivers excellent performance thanks to an incredibly rigid monoblock structure and the highest burst pressure test ever recorded by the Racingline development team, resulting in record times of 100 km/h-0.
The Racingline Stage 3 forged monoblock brake kit takes braking technology to a level never seen before in this market.
The design vision was made possible by advanced 5-axis CNC manufacturing techniques, giving this kit a greater resemblance to high-performance motorsport components than conventional aftermarket parts. The result is a combination of top-level track performance with lightweight, rigidity, and meticulous attention to detail.
Each forged Monoblock caliper is a one-piece piece machined from a heavy-duty forged billet. Instead of two halves bolted together, this design requires a complex 5-axis CNC machining process, typically reserved for the most sophisticated motorsport kits.
The result is a 6-piston caliper that is stiffer and lighter than any other, with exceptional cooling characteristics.
Despite their size, these calipers weigh significantly less than the original. The caliper, pads, and bracket together weigh 5.3 kg (11.7 lb), compared to 8.6 kg (18.9 lb) for the original Golf 7R/S3 equivalent.
The kit includes 380 mm two-piece, fully floating, triple-spline discs, which offer significantly higher heat capacity and reduce fade.
Technical Specifications:
Fully floating disc
Two-piece, heat-treated FC-25 carbon steel rotors
380mm rotors (19-inch wheels)
Spring-loaded floating material for near-silent operation
Tri-groove ventilated discs with factory lapping surface.
Fast track – Pads come with a factory-fitted wear sensor.
AP pad shape for multiple pad options
Goodridge ISO, TUV DOT, and ADR approved hoses
Racingline hub fitment system
What’s in the kit?
– One-piece front brake calipers (pair)
– Caliper mounting brackets (pair)
– Complete set of mounting bolts
– Set of braided steel front brake lines
– Set of sport brake pads (for fast street use)
– Two-piece 380mm fully floating brake rotors (pair)
Notes:
– 19″ stock and other brand wheels may require spacers.
– 19” Racingline and Revo wheels do not require spacers.
380mm VWR650003 RED/BLK/ANO/CHR/BLU COMPATIBILITY:
VW Golf 5 GTI 2005-2008
VW Golf 5 R32 2005-2008
VW Golf 5 GTI ED30/Pirelli 2006-2007
VW Golf 6 GTI 2009-2014
VW Golf 6 R 2009-2014
VW Scirocco R 2009-2017
VW Jetta / GLI 5 2005-2011
VW Jetta / GLI 6 2011-2018
Audi S3 8P 2006-2012
Audi A3 8P 2003-2012
SEAT Leon II Cupra/R 1P 2006-2012
SEAT Leon II 1P 2005-2012
Skoda Octavia II vRS 1Z 2004-2013
