Improve the performance of your Audi RS3 8V 8Y with the do88 Performance intercooler kit!

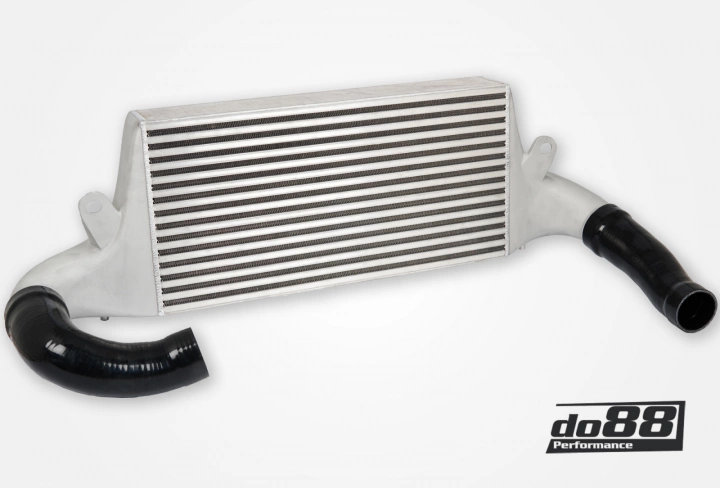

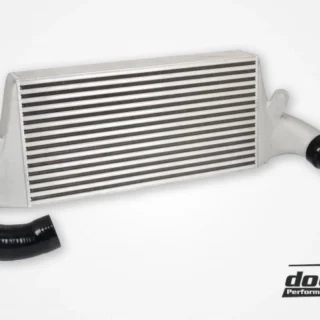

Designed as a direct replacement for the OEM, this kit features a large 97mm core from Garrett Motorsport, rated at 1000 HP under all conditions! Experience a significant increase in power and torque, thanks to our design that ensures maximized airflow and significantly cooler intake temperatures. Perfect for high-performance and track cars, this kit is your ticket to true performance.

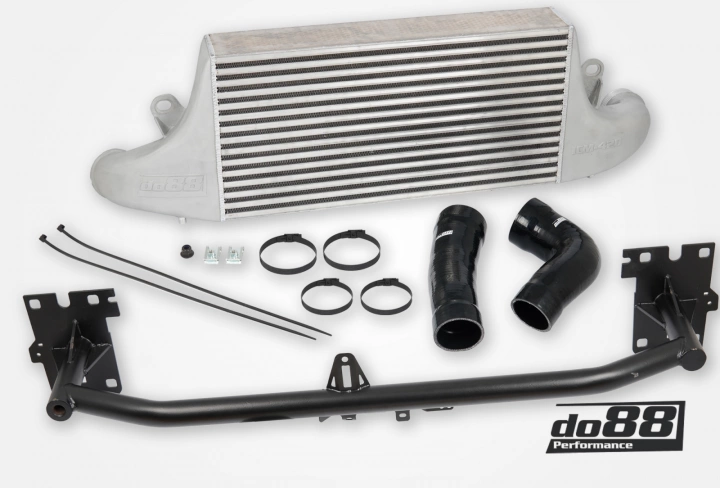

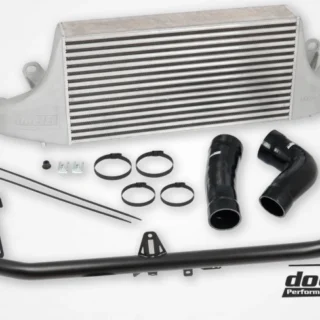

The biggest obstacle when designing a high-performance intercooler for the RS3 is the OEM shroud, which often limits both the physical size of the core and blocks ambient airflow to the intercooler. To avoid such compromises, a new chromoly steel crash bar with Ø 40 mm (1 5/8″) tubing is included. It installs just like the OEM unit, but allows for unrestricted ambient airflow and offers better clearance for a larger core. The mounting points for the ACC, adaptive cruise control, radar sensor, and ambient temperature sensor remain the same. Of course, do88 AB has not conducted a formal crash test and may not meet road legal standards for the designated country, but the rigidity of this crash bar makes it ideal for high-performance track cars.
The intercooler core, designed and manufactured by the esteemed Garrett Motorsport, uses advanced aerospace technology. The core is made of thin, tightly packed cooling fins that provide highly efficient heat transfer, thus ensuring optimal performance. Airflow is efficiently and evenly distributed over the core via our uniquely designed free-form cast end tanks. After numerous iterations of CFD analysis, 3D printing, and dyno testing, the intercooler core is now available in a variety of colors. flow, we’ve perfected a design that delivers maximum airflow. Form follows function: our 80mm machined connections far surpass the OEM design in terms of dynamics, eliminating bottlenecks and enabling high power outputs. To our knowledge, do88 is the only brand that has gone above and beyond by enlarging the hose connections to eliminate these bottlenecks. Critical to turbo efficiency to reach high numbers!

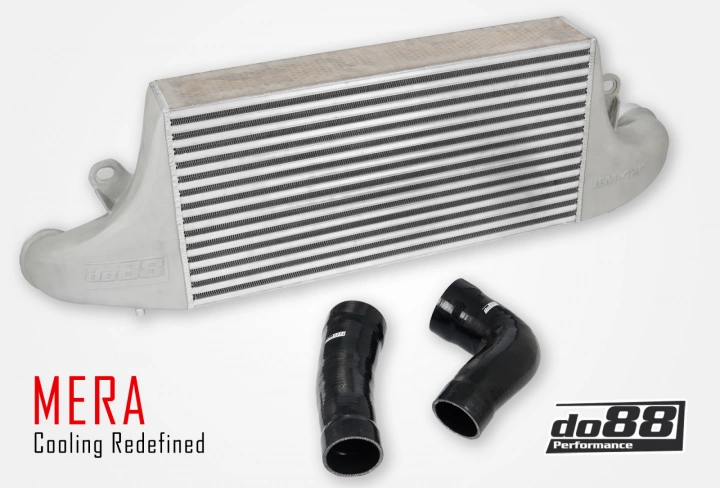

This intercooler is part of our MERA range! MERA also means more cooling, better airflow, more performance. Simply MERA!
To ensure compatibility with the larger connections, the kit includes matching silicone hoses that connect to the OEM charge pipes. Welding is performed in-house at do88’s facility in Sweden, ensuring the highest quality.
Since the OEM intercooler often falls short of performance on tuned cars, an upgrade is a must for this otherwise very capable platform! Regardless of whether your vehicle is at standard boost levels or highly tuned Our intercooler kit significantly improves performance over the OEM intercooler.
During stringent temperature tests on a closed-air track, not only did we notice a reduction in intake air temperature, but the Dragy device installed in the car showed a significant reduction in acceleration time from 100 to 200 km/h (62 to 124 mph) by half a second with our intercooler in place! While it may seem modest, this is a considerable gain, a testament to the increased power.
FEATURES:
Increased core volume: 118% larger than OEM. 18102 cm3 compared to OEM 8307 cm3.
Increased active cooling area: 80% larger cooling area, 1866 cm2 compared to OEM 1038 cm2. Lower intake air temperature under identical conditions: 23°C compared to OEM 55°C.
An impressive reduction in 32°C! Exact data can be found in the diagrams below the product images.
Higher airflow, lower pressure drop: @ 0.125 bar / 1.81 psi pressure drop: 526 CFM (432 CFM), 22% more! Precise CFM values can be found in the diagrams below the product images.
High-density Garrett motorsports Bar & Plate core, capable of handling 1,000 hp.

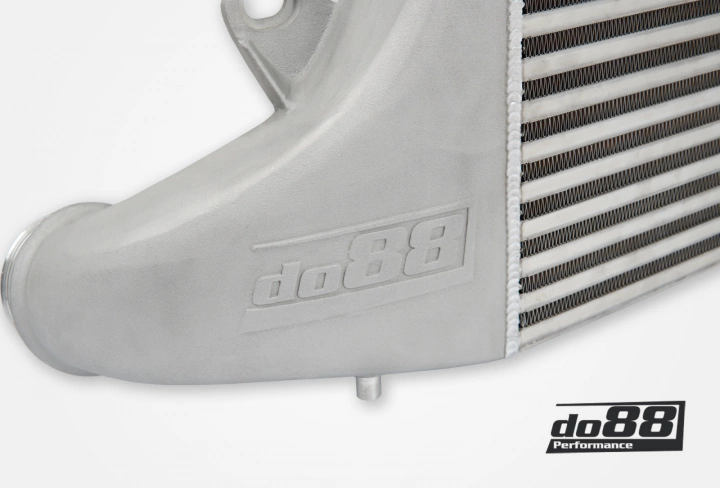

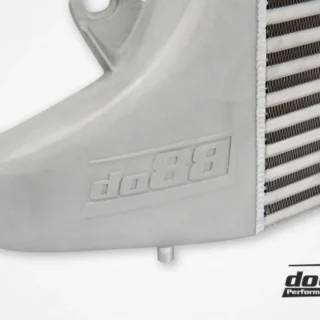

Unique, free-form, 3D-cast end tanks.
Easy installation, no modifications required (except on TTRS).
Chromoly guard beam that does not obstruct ambient airflow.
Enhance the performance of your Audi RS3 with the do88 Performance intercooler kit!
